Product Description

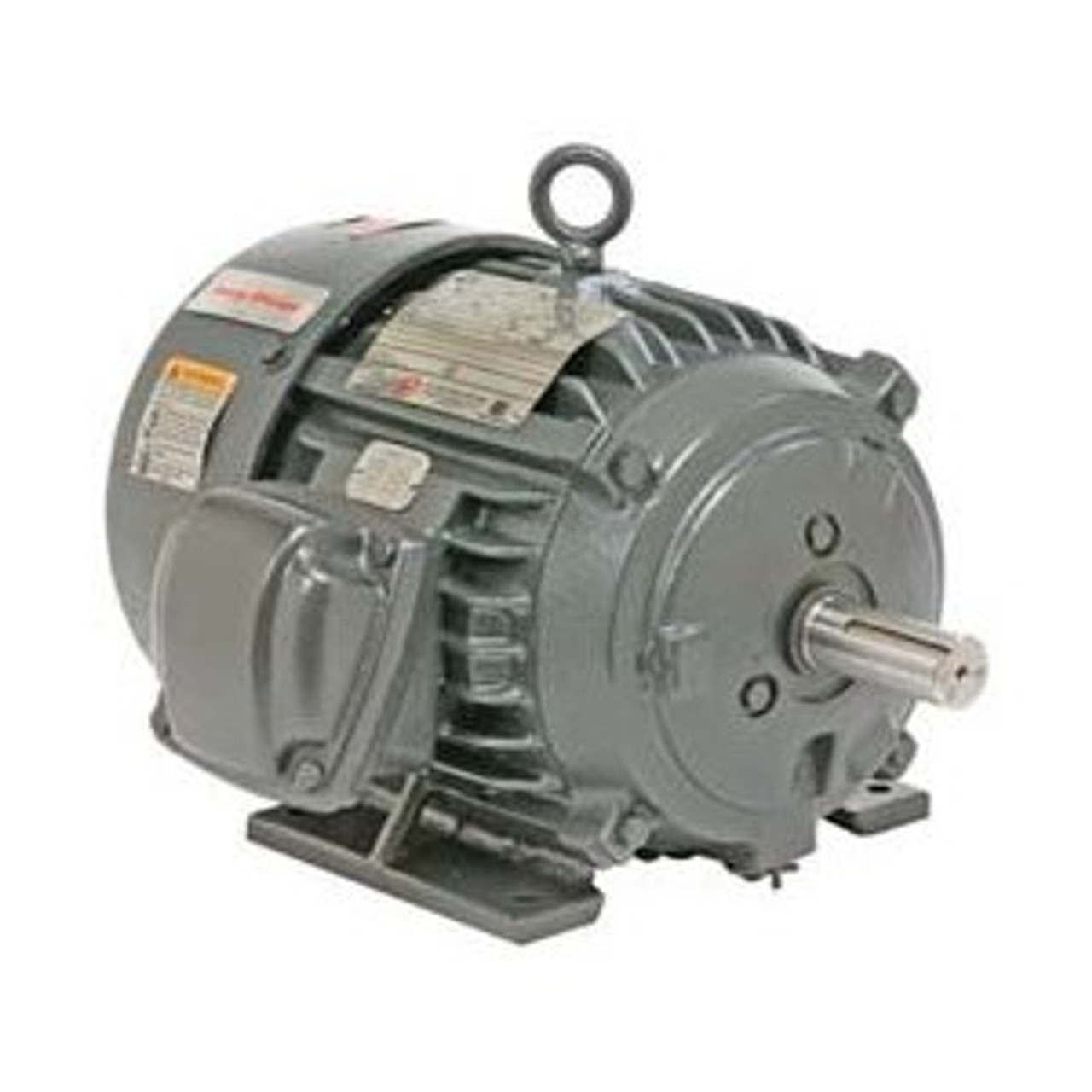

X60P2B 3 Ph TEFC Hazardous Location 1E3 Dual Label - 60 HP
General Purpose Three Phase, Totally Enclosed Fan Cooled, Div. 1 Hazardous Location, NEMA Premium Efficient - IE3 Dual Label
Applications:
For pumps, fans, compressors, conveyors, and tools located in hazardous locations as defined by Class and Group
Features:
- UL Listed & CSA Certified
- Cast Iron Inner Bearing Caps 180 frame and larger
- 40 Degrees Celsius Ambient, NEMA Design B Performance
- Regreasable 180 frame and up
- Lifting Provisions
- Conversion Kits: Cast Iron Fan Kit available
- Sealed or shielded bearings
HP - 60
RPM - 1800
Voltage - 230/460
Frame - 364T
Class I Group - CD
Class II Group - FG
Temp Code - T3C
SF - 1.00
C Dimension - 32.3 In.
Full Load Eff - 95.0
Full Load Amps - 136/68
Automatic Reset Thermal Overload Protector
Non - NEMA Rating
Please Note: Due to the weight of this item, shipping cost is for estimating purposes only. To get an accurate shipping cost, you must call for a quote.
Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
