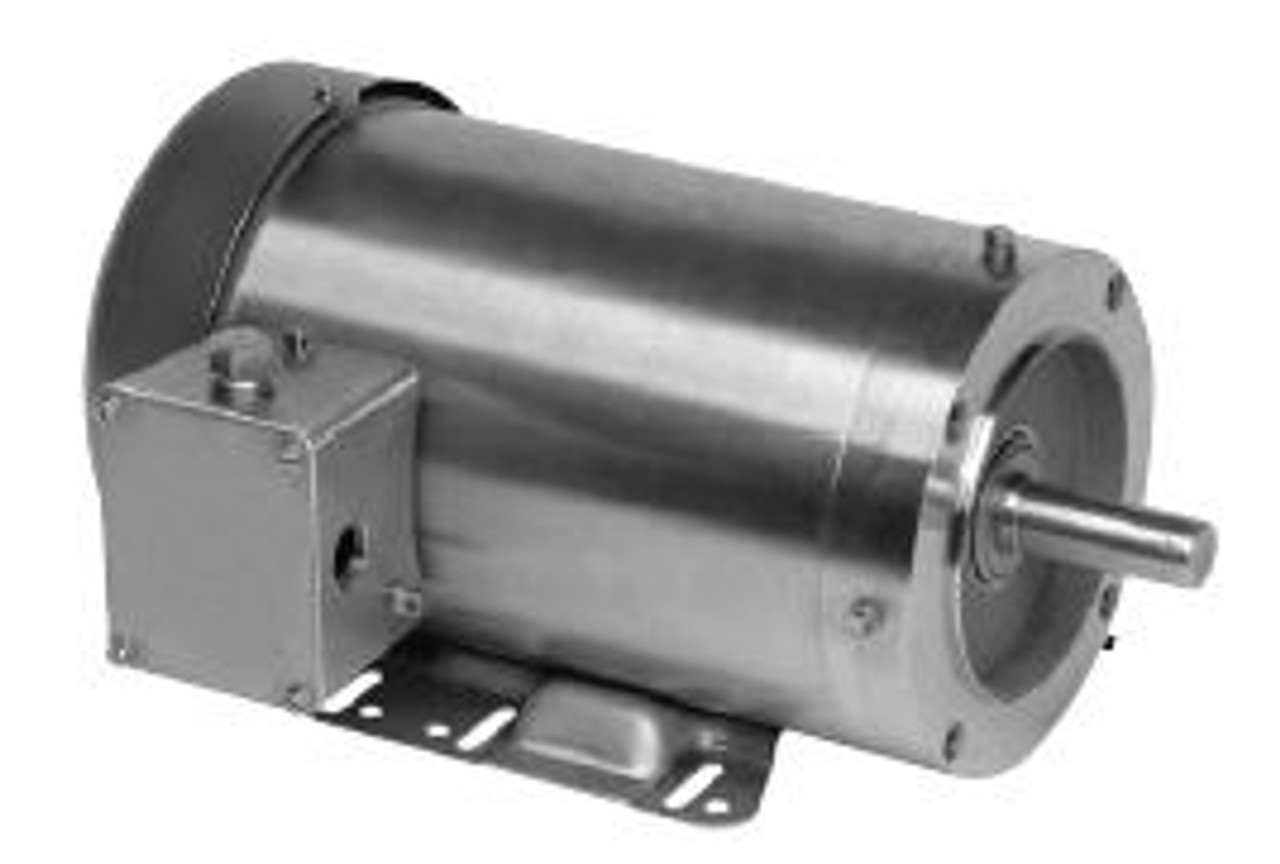

WDS2P2ACR All Stainless Steel Washdown, 3 Phase, Totally Encloseed

Product Description

All Ratings Are Compliant with Energy Independence and Security Act (EISA) Standards

APPLICATIONS:
Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.

FEATURES:
-Footless
-All Stainless Steel External Construction
-40*C Ambient, NEMA Design B
-Inverter Grade Insulation System (Meets NEMA MG-1 Part 31)
-303 Stainless Steel Shaft
-Multiple Stainless Steel T-type Drains
-TEFC Except Where Noted
-Rust Inhibitor on Rotor
-BISSC Certified
-VBX Bearing Isolators by Impro/Seal On Drive End
-Double Sealed Ball Bearings
-Laser-Etched Oversized Nameplate
-RTV-Sealed Lead Exit Holes
-Moisture Resistant Gasketed Conduit Box with NPT Lead Holes
-Easy to Read Connection Leads

SPECS:
HP - 2
RPM - 1800
VOLTAGE - 208-230/460
FRAME - 145TC
SF - 1.15
C DIMENSION - 13.2
FULL LOAD EFF - 86.5
FULL LOAD AMPS - 5.7-5.4/2.7
