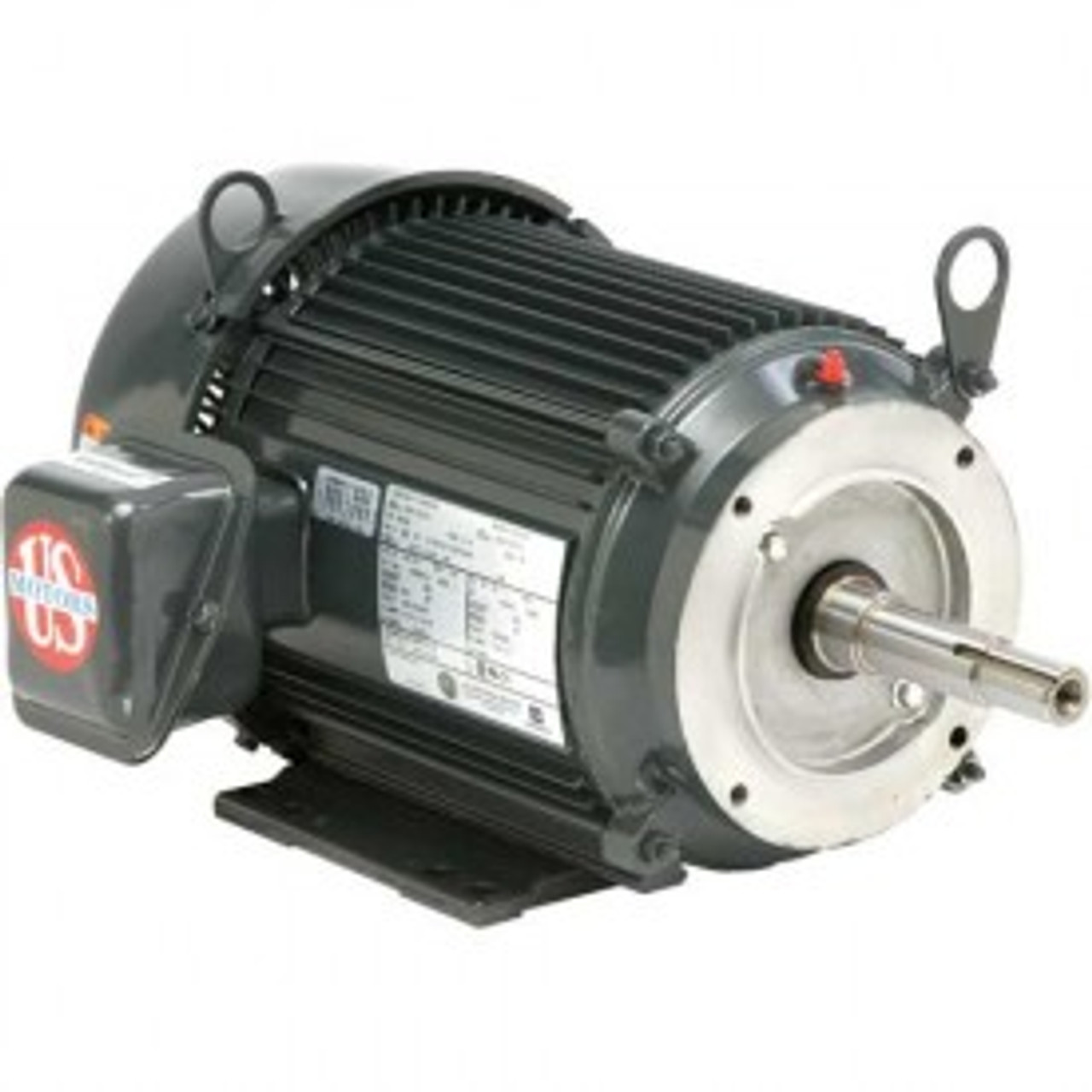

UJ7P2GM Close Coupled Pump TEFC 7-1/2 HP

Product Description

UJ7P2GM Close Coupled Pump TEFC 7-1/2 HP


Special Application Close Coupled Pump Three Phase Totally Enclosed Fan Cooled NEMA Premium Efficient

Applications:
For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments.

Features:
- Class F Insulation, Class B rise at full load on 60 Hz Sine wave power
- 40 Degrees Celsius Ambient, NEMA Design B Performance on 60 Hz Sine Wave Power
- Double Shielded Bearings
- JM Shaft for Mechanical Seal
- CE Marking on Name plate
- Drip Cover Kits available

HP - 7-1/2
RPM - 1800
Voltage - 575
Frame - 213JM
SF - 1.25
C Dimension - 19.8 In.
Full Load Eff - 91.7
Full Load Amps - 7.3


Not a normal stock item - please call for availability

Please note: Due to the weight of this item, shipping cost is for estimating purposes only. To get an accurate shipping cost, you must call for a quote.

Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
