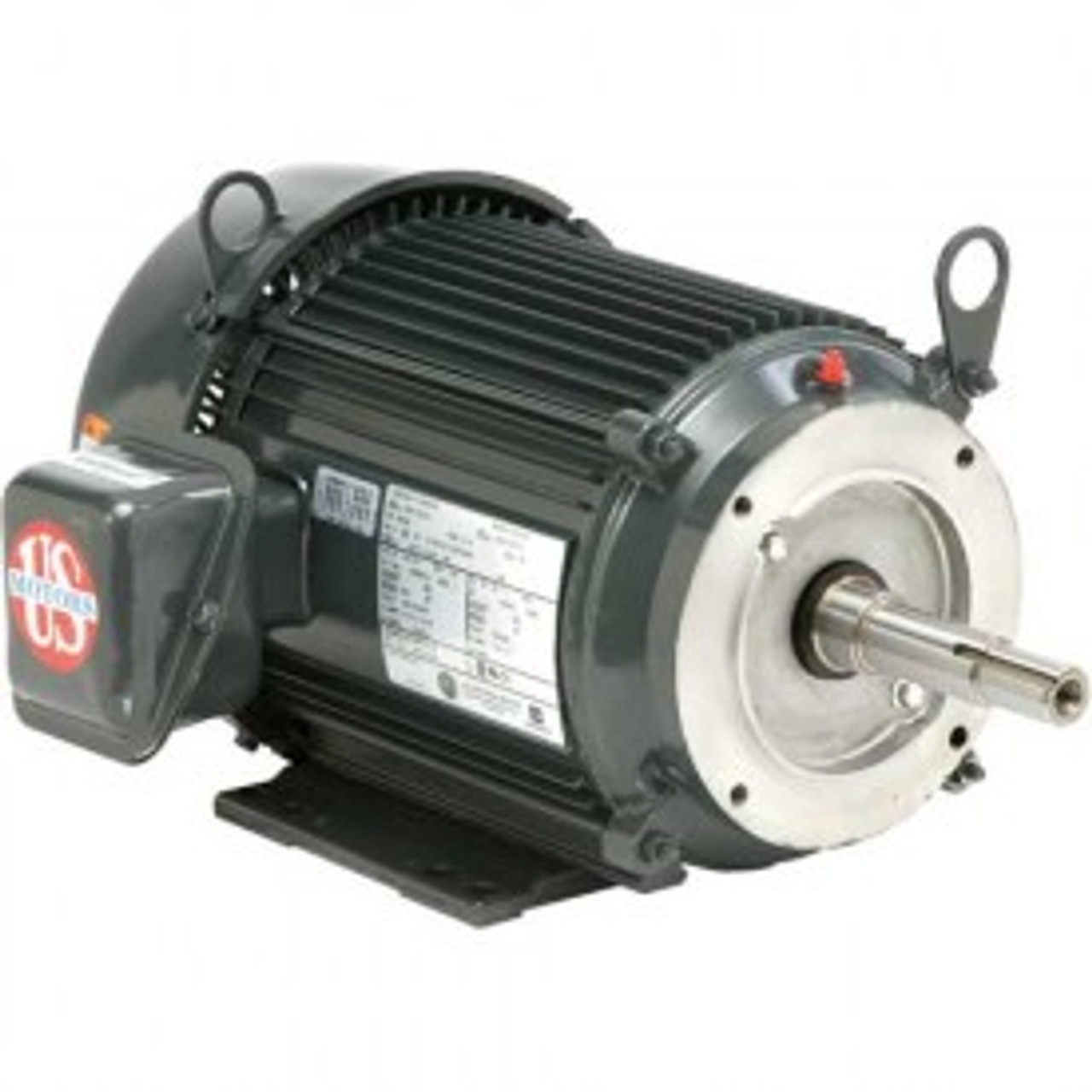

UJ3P1BM Close Coupled Pump TEFC 3 HP

Product Description

UJ3P1BM Close Coupled Pump TEFC 3 HP


Special Application Close Coupled Pump Three Phase Totally Enclosed Fan Cooled NEMA Premium Efficient

Applications:
For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft. Used in damp, dusty or dirty environments.

Features:
- Class F Insulation, Class B rise at full load on 60 Hz Sine wave power
- 40 Degrees Celsius Ambient, NEMA Design B Performance on 60 Hz Sine Wave Power
- Double Shielded Bearings
- JM Shaft for Mechanical Seal
- CE Marking on Name plate
- Drip Cover Kits available

HP - 3
RPM - 3600
Voltage - 230/460
SF - 1.25
C Dimension - 17.8 In.
Full Load Eff - 88.5
Full Load Amps - 7.8/3.9


Not a normal stock item - please call for availability

Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
