UH609ES Century General Purpose Motor 1-1/2 HP 3600 RPM 56C Frame

Product Description

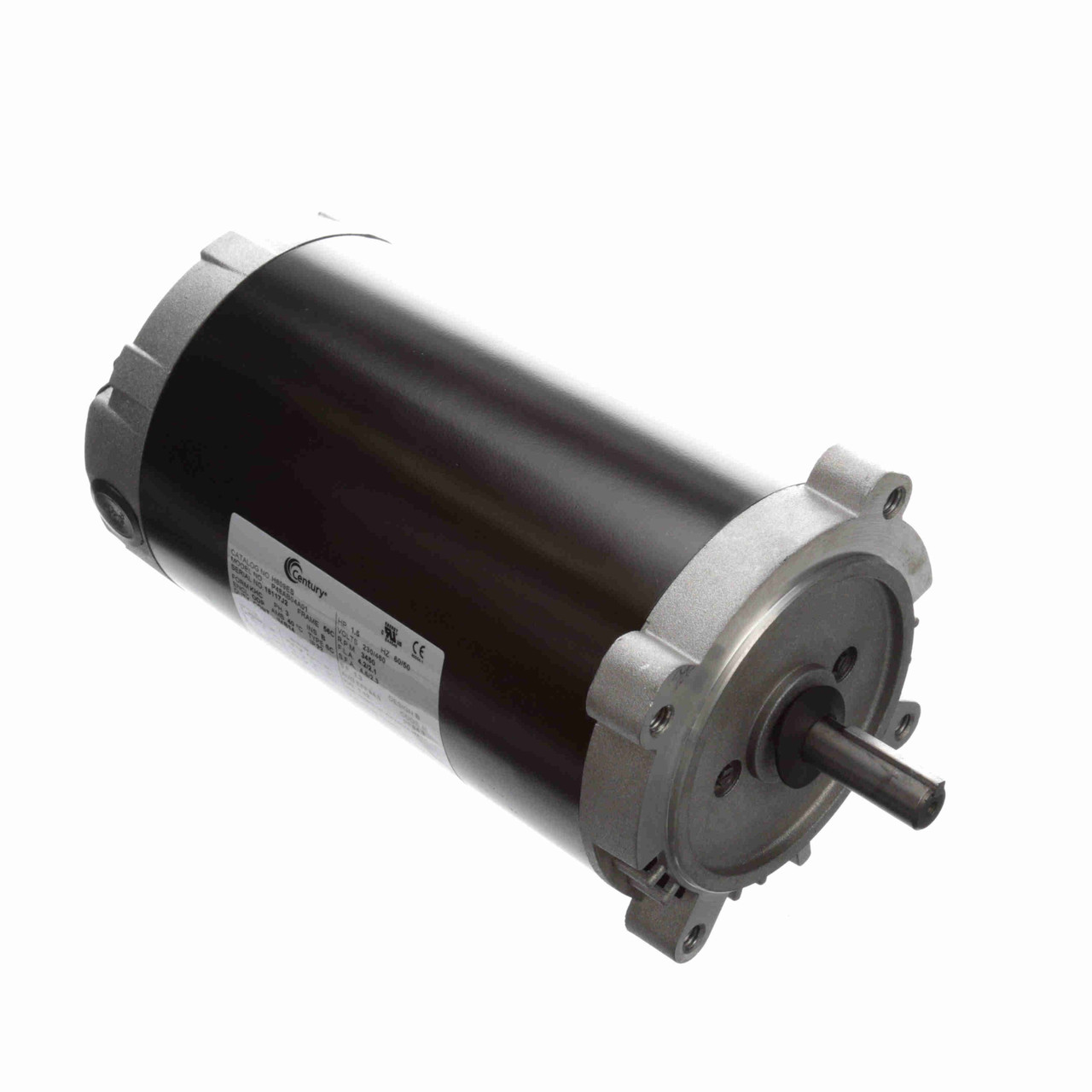

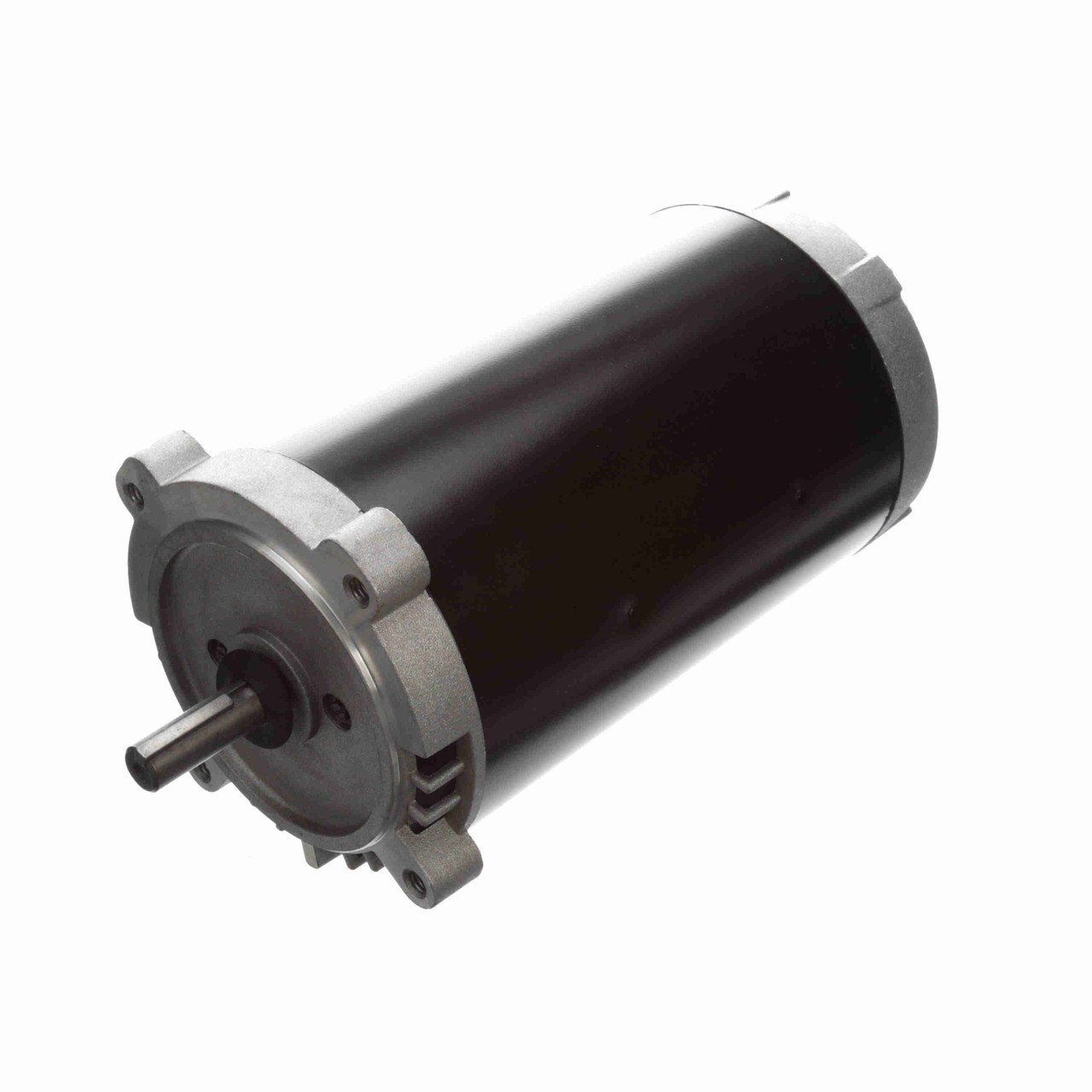

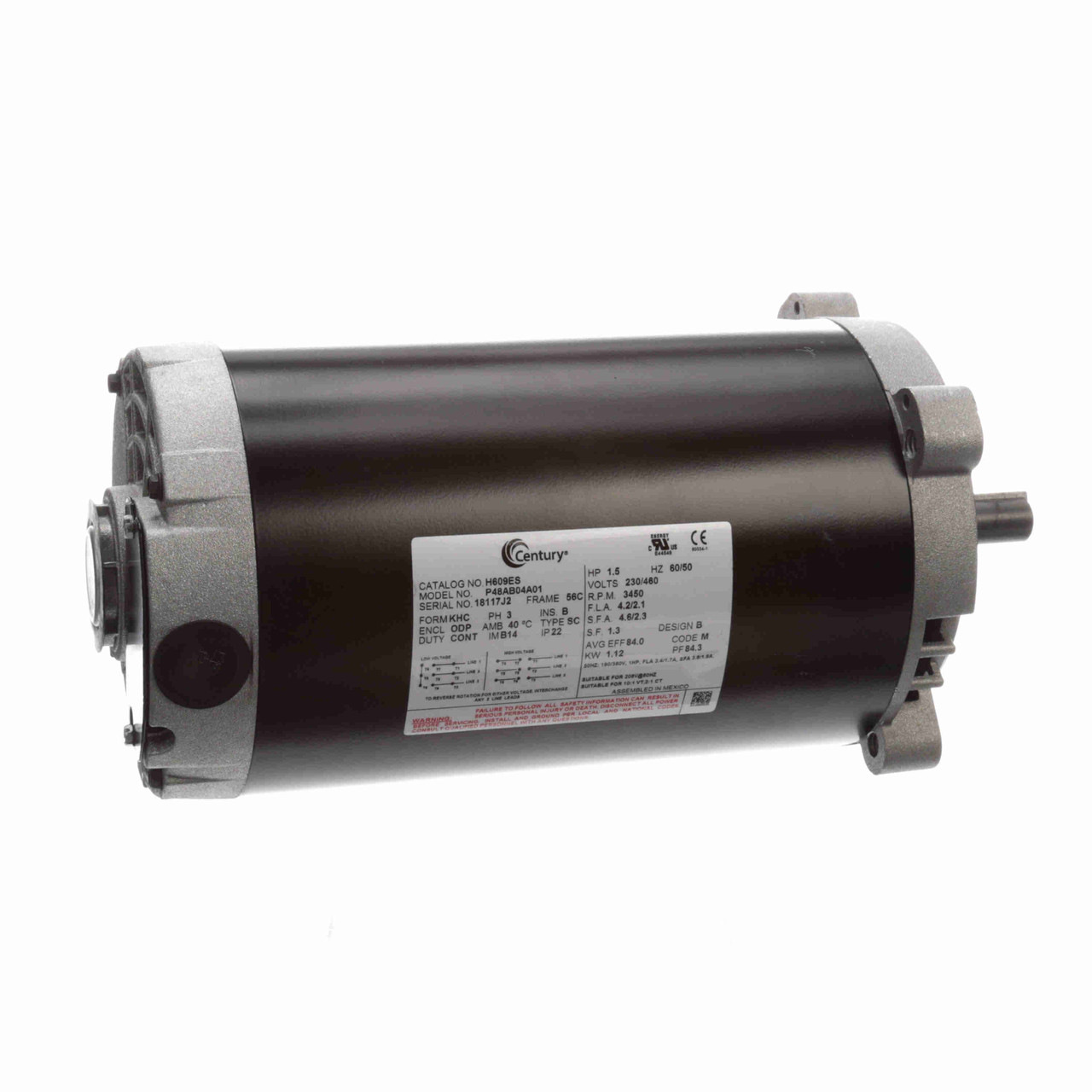

Century UH609ES General Purpose Motor

Features: Double Sealed Ball Bearings, 60 Hz, 40 degree C ambient, Class B Insulated

Applications: Domestic, commercial and industrial water systems. May be mounted horizontally or vertically, open or enclosed, keyed or threaded shaft. Shaft end ball bearings locked in bracket takes all pump thrust.

• 1-1/2 HP
• 3450 RPM
• 208-230/460 Volts
• 5.8-5.6/2.8 Amps
• 1.30 Service Factor
• 56C Frame
• Keyed Shaft
• 60/50 Hertz
• 50 Hz-1.00 Service Factor, 190/308 volts

Cross Reference: K3152 VM3120 P005 V56T34D5314
