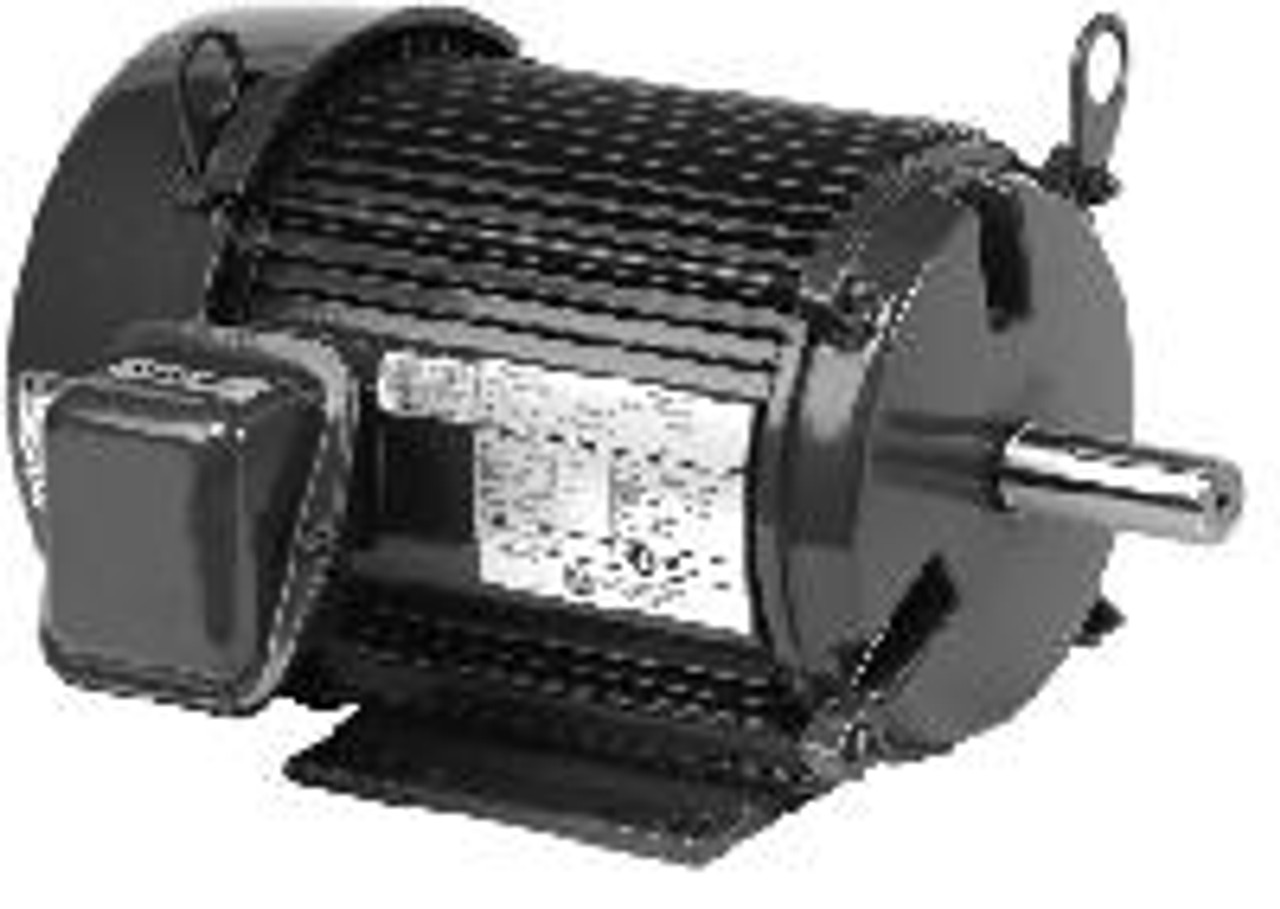

U7P2D General Purpose 3 Phase TEFC 1E3 Unimount 7-1/2 HP

Product Description

U7P2D General Purpose 3 Phase TEFC 1E3 Unimount 7-1/2 HP

Applications:
For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

Features:
-Class F Insulation, Class B Rise at Full Load on 60 Hz Sine Wave Power
-Rolled Steel Frame
-Aluminum End Shields with Steel Bearing Inserts
-Over sized Diagonally Split Conduit Box
-40 Degrees Celsius Ambient, NEMA Design B Performance
-Conversion Kits: C & D Flanges, Drip Covers

HP - 7-1/2
RPM 1800
Voltage - 230/460
Frame - 213T
"C" Dim - 18.6 Inches
Full Load Eff. - 91.7
Full Load Amps - 20-18.2/9.1
Service Factor 1.25

60/50 Hz rated with no derate on HP, 230/460 volt 60 Hz ratings operate on 190/380 volt 50 Hz, 460v 60 Hz ratings operate on 380v 50 Hz; Full 60 & 50 Hz data on Nameplate.

Cross Reference: U7P2B 4GYZ6 23J871

Please note: Due to the weight of this item, shipping cost is for estimating purposes only. To get an accurate shipping cost, you must call for a quote.

Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
