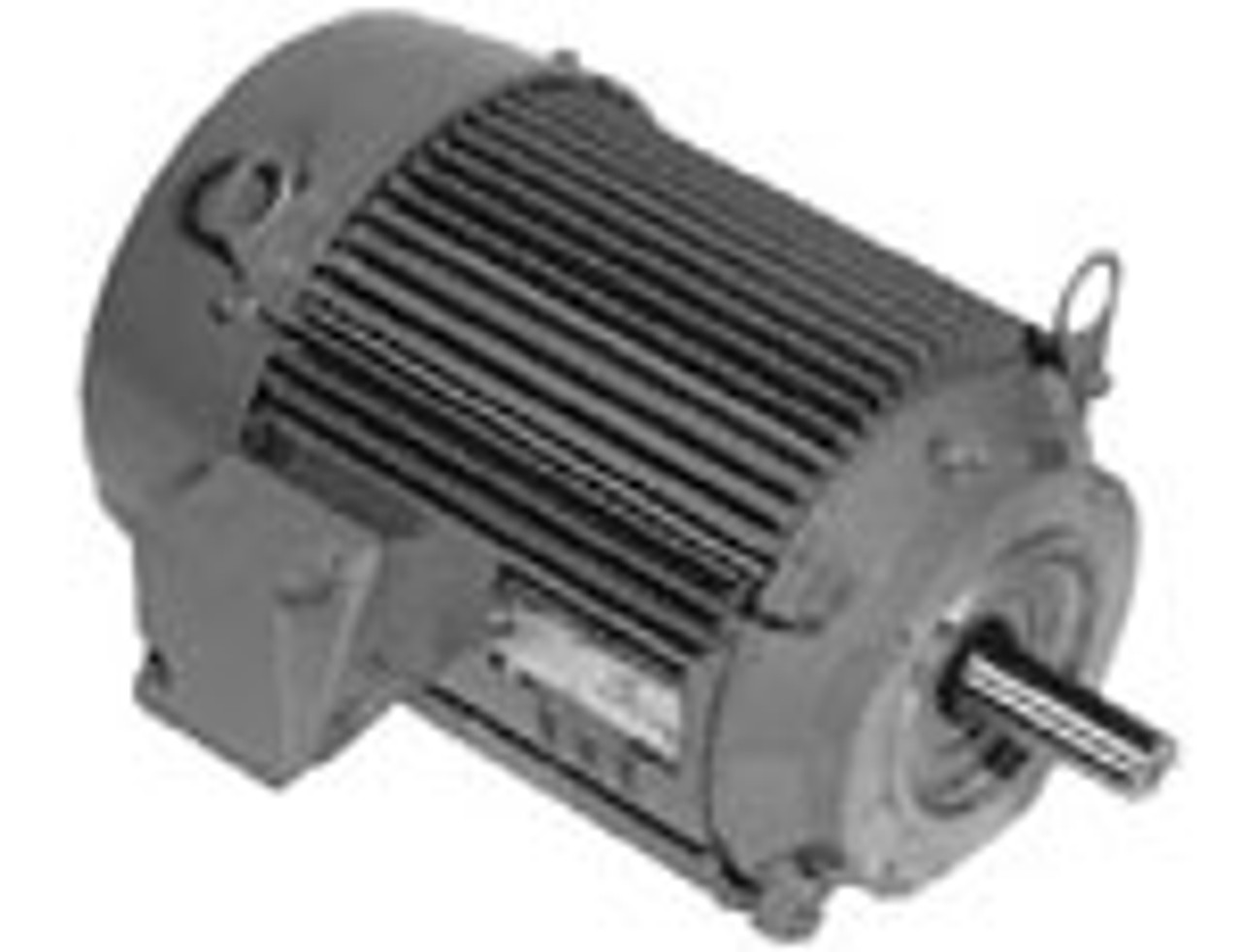

U5E1DCR Three Phase TEFC Unimout IE3 C-Face 5 HP

Product Description

U5P1DK Three Phase TEFC Unimout IE3 C-Face 5 HP

Applications:
For use on pumps, fans, compressors, material handling and other general purpose applications in damp, dusty or dirty environments.

Features:
-Class F Insulation, Class B Rise at Full Load on 60 HZ Sine Wave Power
-Shaft Slinger on Pulley End
-Full HP @ 50 Hz.
-Drip Cover & Brake Conversion Kits available.
-40 Degrees Celsius Ambient


HP - 5
RPM - 3600
Voltage - 208-230/460-
Frame - 184TC
SF - 1.25
C Dimensions - 16.9
Full Load Eff. - 87.5
Full Load Amps - 13.8-12.3/6.1

60/50 Hz rated with no derate on HP, 230/460 volt 60 Hz ratings operate on 190/380 volt 50 Hz ratings operate on 380V 50 Hz; Full 60 & 50 Hz data on Nameplate

Please note, due to the weight of this item, shipping cost is for estimating purposes only. To get an accurate shipping cost, you must call for a quote.
Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
