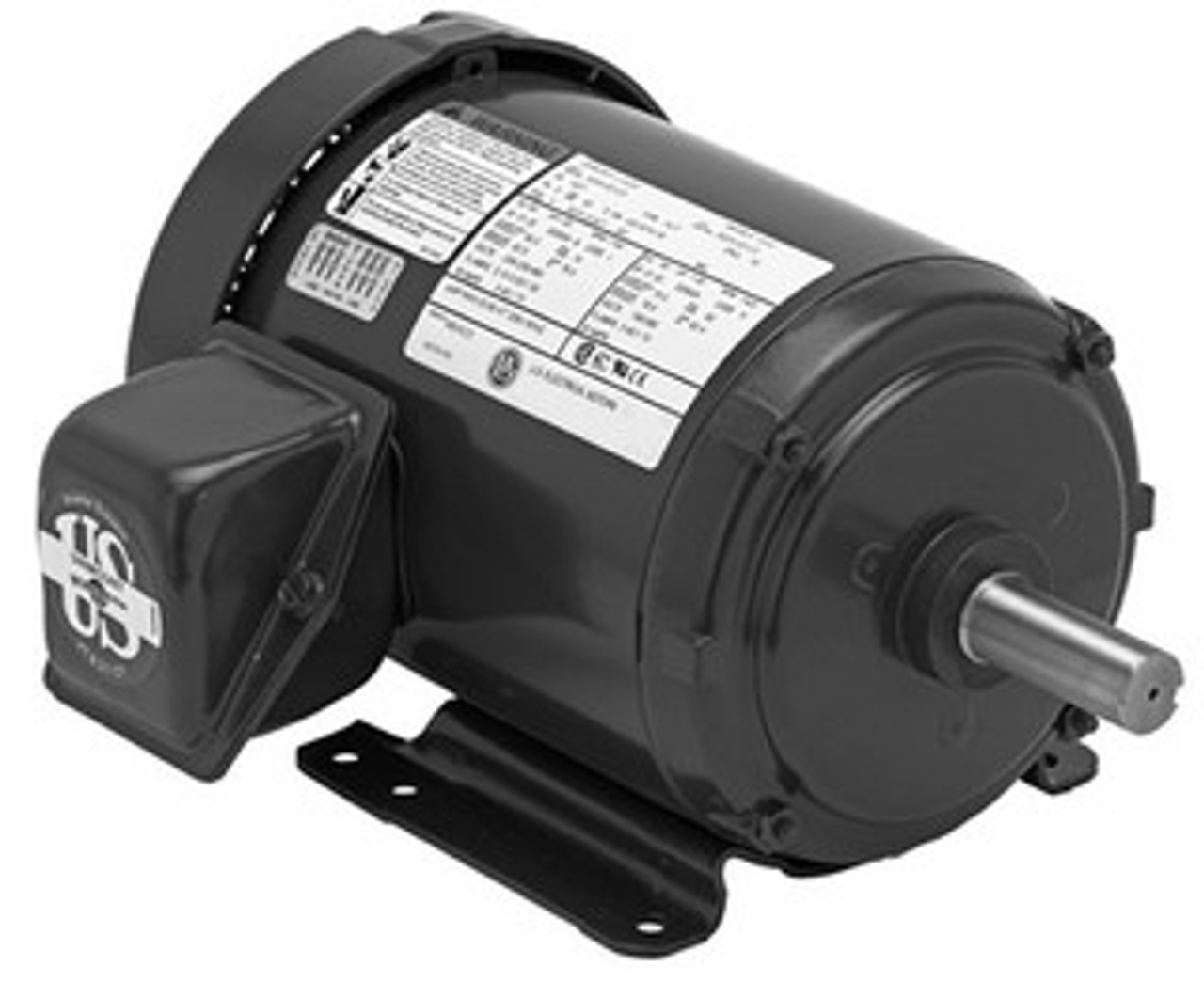

T34S3B14 General Purpose 3 Phase TEFC 1E3 Unimount 3/4 HP

Product Description

T34S3B14 General Purpose 3 Phase TEFC 1E3 Unimount 3/4 HP

HP - 3/4
RPM 1200
Voltage - 208-230/460
Frame - 143T
"C" Dim - 12.8 Inches
Full Load Amps - 3.4-3.5/1.7

Applications:
For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

Features:
-Class F Insulation, Class B Rise at Full Load on 60 Hz Sine Wave Power
-Rolled Steel Frame
-Service Factor 1.15
-Aluminum End Shields with Steel Bearing Inserts
-Over sized Diagonally Split Conduit Box
-40 Degrees Celsius Ambient, NEMA Design B Performance
-Conversion Kits: C & D Flanges, Drip Covers

60/50 Hz rated with no derate on HP, 230/460 volt 60 Hz ratings operate on 190/380 volt 50 Hz, 460v 60 Hz ratings operate on 380v 50 Hz; Full 60 & 50 Hz data on Nameplate.
