FD12BA2P US-Nidec Agri Duty Fan Motor 1/2 HP 1800 RPM 56 FRAME

Product Description

APPLICATIONS:  Agri duty fans designed for direct drive and vent fans in poultry and livestock houses. Hatcher and setter motors are used in hatchers and setters.

FEATURES:  Split Phase, Automatic Reset Thermal Overload Protector, Continuous Air Over Duty, Ball Bearings, Built-in Conduit Box.

• 1/2 HP
• 1800 RPM
• 56 FRAME
• SINGLE PHASE
• 115/230 VOLT
• 8.0/4.0 AMP
• 1.25 S.F.
• SINGLE SPEED
• TEAO
• CCWLE REVERSIBLE
• RIGID
• .625" X 1.875" KEYED SHAFT

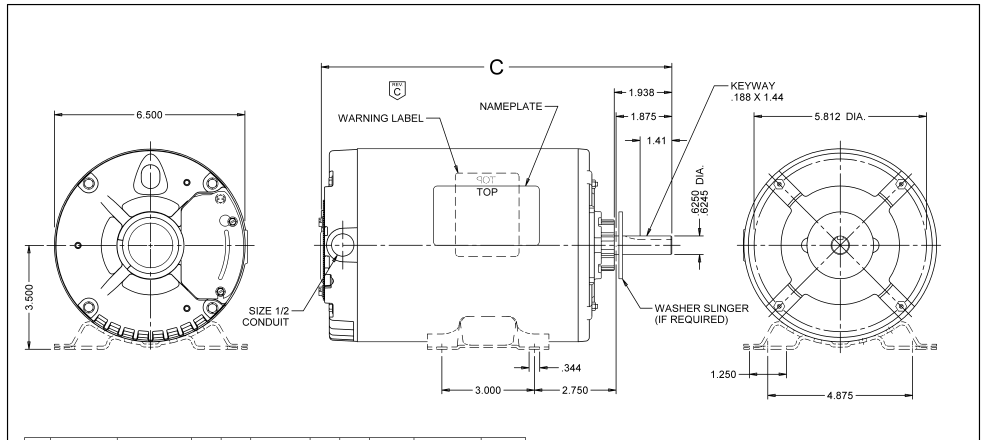

• 11.4 C-DIMENSION

CROSS REFERENCES:  S63KZKCN-8037 ARB2054L3

NOTES: Split Phase
