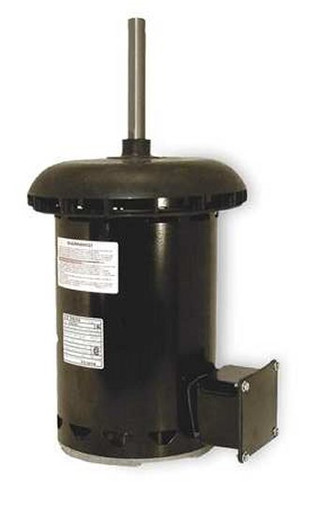

FC1086A Commercial Condenser Fan Motor .8 HP

Product Description

FC1086A Commercial Condenser Fan Motor .8 HP

Features: Auto Protector, Class "B" Insulation, Heavy Duty Ball Bearing, High Thrust Capacity, "Patented" Fan Canopy, Reversible, Vertical Shaft Up Only, 48 Frame, 60 Degrees Celsius Ambient, 60 HZ Only

.8 HP
1075 RPM
200-230/460 Volts
4.6 Amps @ 230V
2.3 Amps @ 460V
20MFD/370V Capacitor***(NOT INCLUDED)

Cross Reference: 764 F48K6A15 F48K6A15A1 F48K6A17 F48K6A17C1 F48K6A18 F48K6A19 F48K6A6 F48SG6A19 F48SN6V21 F48SS6V14 F48SU6V1 F48SU6V11 F48SU6V12 F48SU6V1A1 F48SU6V5 F48SU6V6 F48SU6V8 F48SX6V1 F48SX6V2 70964D1 70974D1 HC44VE462 HC46VL221 HC46VL600 HC6VL221 K3566 10512 M-2-1129 M2-1128 714 764
