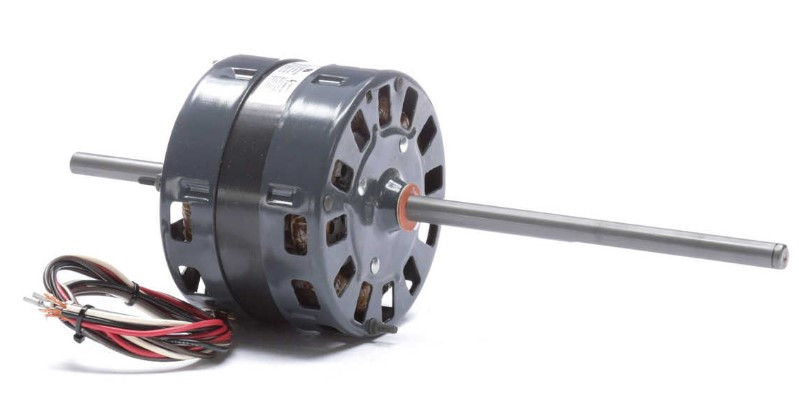

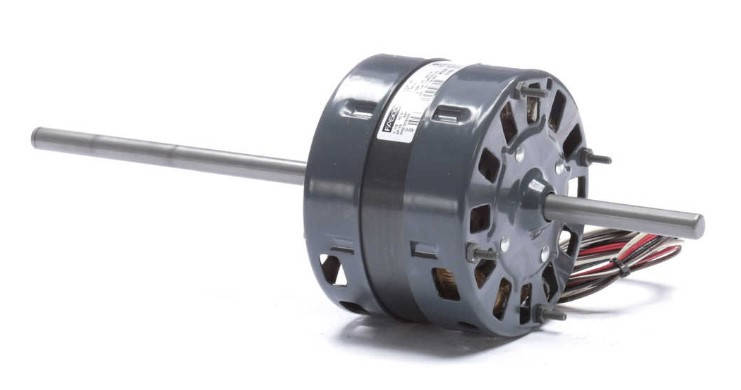

Fasco D1092 RV Air Conditioner Motor • 1/3 HP 115V 1675 RPM 2-Speed (7184-0156, 7184-0432, 1468-3069)

Product Description

Geniune Fasco Electric Motor D1092

• 1/3 HP, 3.4 Amp, 115 Volt, 60HZ
• 1675 RPM / 1080 RPM - 2 Speed
• New 7.5 MFD 2-Prong Capacitor Included
• 5" Diameter - 42 Frame
• Counter Clockwise Shaft end
• Open Air Over ventilation
• Single Phase
• Double Shaft Diameter 7-5/16" X 1/2" X 3-1/2" w/Flat
• Sleeve Bearings
• 23" Leads
• (4) Extended Studs Lead End, (1) Extended Stud Opposite Lead End

CROSS REFERENCES:   7184-0156, 7184-0432, Y6L457D01L, 7855MVA-A11U
Replaces Coleman Mach Fan Motor Part No. 1468-306, 1468-3068, 1468A3068, 1468-3069, 1468A3069, 1468-3109
Fits 6000 & 8000 Series AC Units
Coleman Models: 48004, 48014, 48064, 48203, 48204, 48213, 48253, 48254, 48263, 48264, 8332, 8333, 8335, 8433, 8534, 8535, 8632, 8633

Drawing PDF
