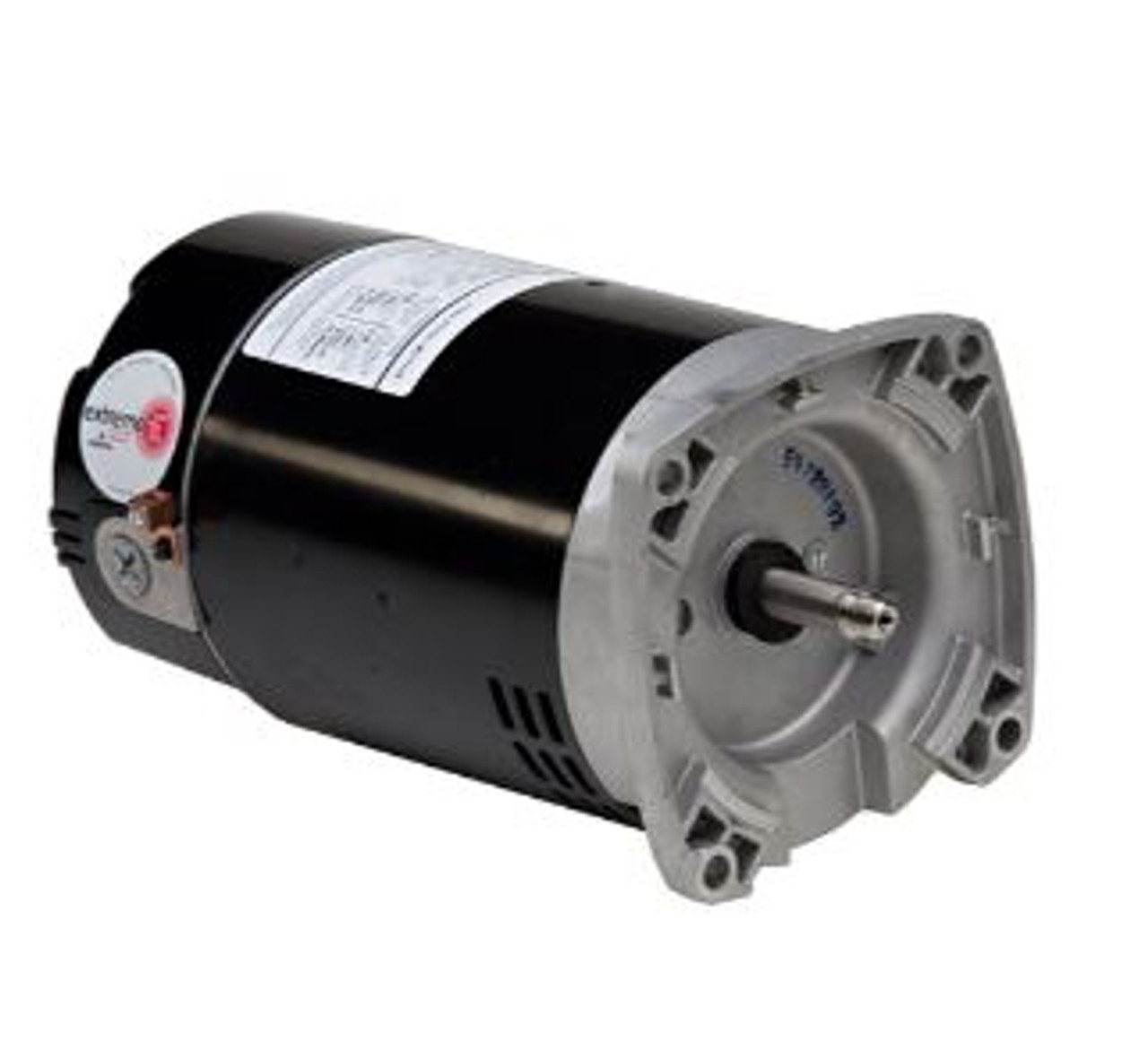

EH636 Square Flange Pool Motor 1-1/2 HP

Product Description

EH636 Square Flange Pool & Spa Motor

• 1.5 HP
• 3450 RPM
• 56Y FRAME
• ODP
• 208-230/460 VOLT
• 6.4-6.2/3.1 AMPS
• 3 PHASE
• SINGLE SPEED
• SQUARE FLANGE
• BALL BEARINGS
• CWLE REVERSIBLE
• SHAFT 1/2" x THREADED
• NO THERMAL PROTECTION
• SERVICE FACTOR 1.47 (Service Factor x HP = Total Output)

The swimming pool motors have a square mounting face for the pump attachment, with 4 non-threaded bolt holes to attach the pump. Motor has a threaded shaft. This type is common to most Sta-Rite, Red Jacket and Sears jet and pool pumps.
