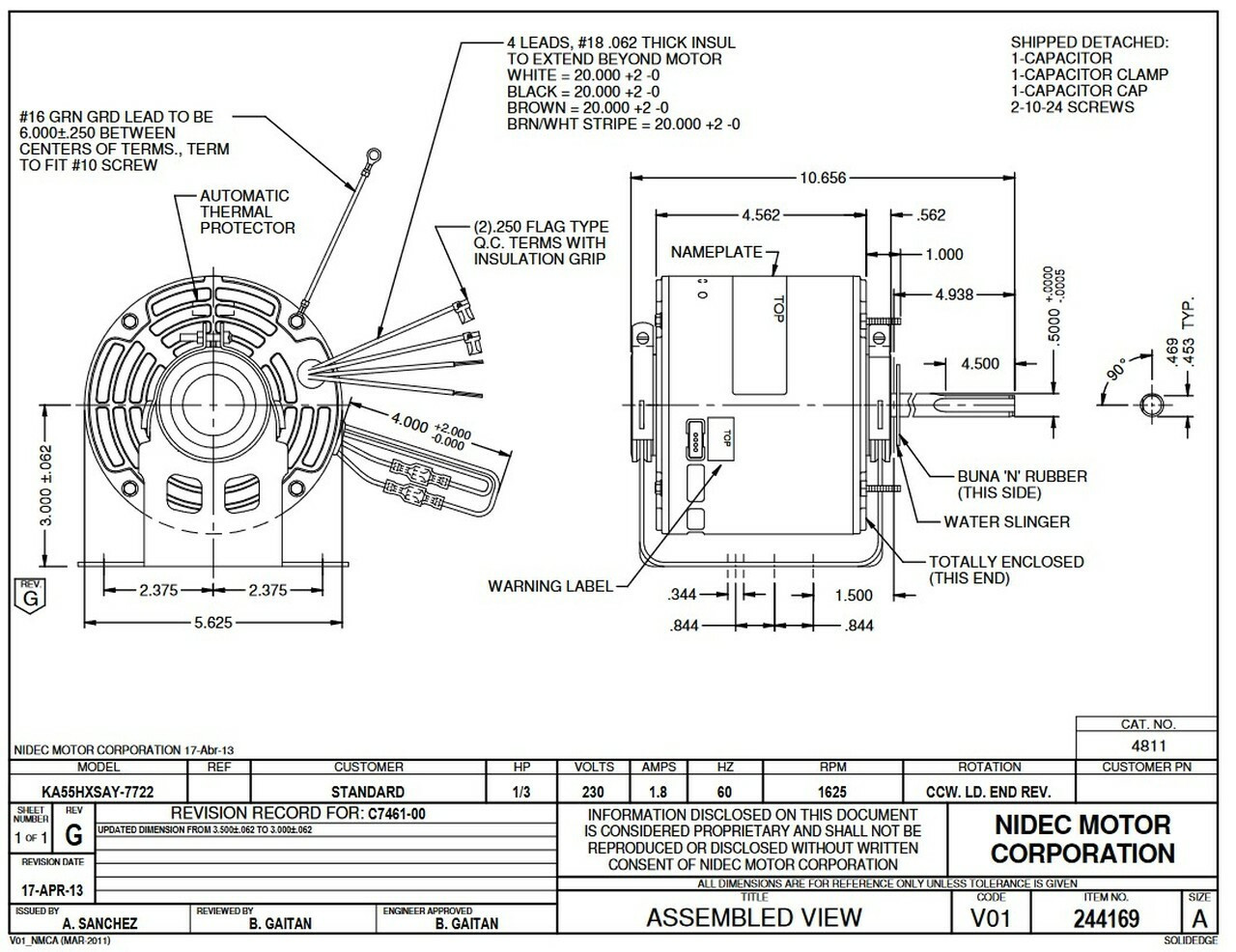

Overview Product Description E-4811 (Open Box) NIDEC 5.6" CONDENSER MOTOR Applications: For use on condenser cooling fans.Features: High Efficiency Economizer Rated 20" or 30" Leads unless otherwise noted Double Flats on Shaft - Economizer Models Capacitor Mounting Holes in Frame Band Designed for use with 370V Capacitors Automatic Reset Thermal Overload Protector Sleeve Bearings have All Angle Thrust System Enclosed Endshield at Shaft End Continuous Duty, Air Over Class B Insulation Green Ground Lead Extended Studs 60 Hz Reversible Rotation, Water Slinger HP - 1/3 RPM - 1625 VOLTS - 230 BEARINGS - SLV CAP MFD - 5 AMP - 1.8 SHAFT N - 4.9 BASE XD - 5.1 SHELL XI - 4.6 TOTAL C - 10.7 Cross Reference: KA55SAY7722802B Disclaimer: All opened box products may have been previously installed. Signs of being installed which may include but not limited to bolt mark, set screw marks, and or cosmetic scratches. Item may not be in original factory box. All open boxed items have been restored to like-new condition and have been tested to ensure flawless operation. All opened box products will carry a one year warranty from date of purchase. Product Videos Custom Field Product Reviews
