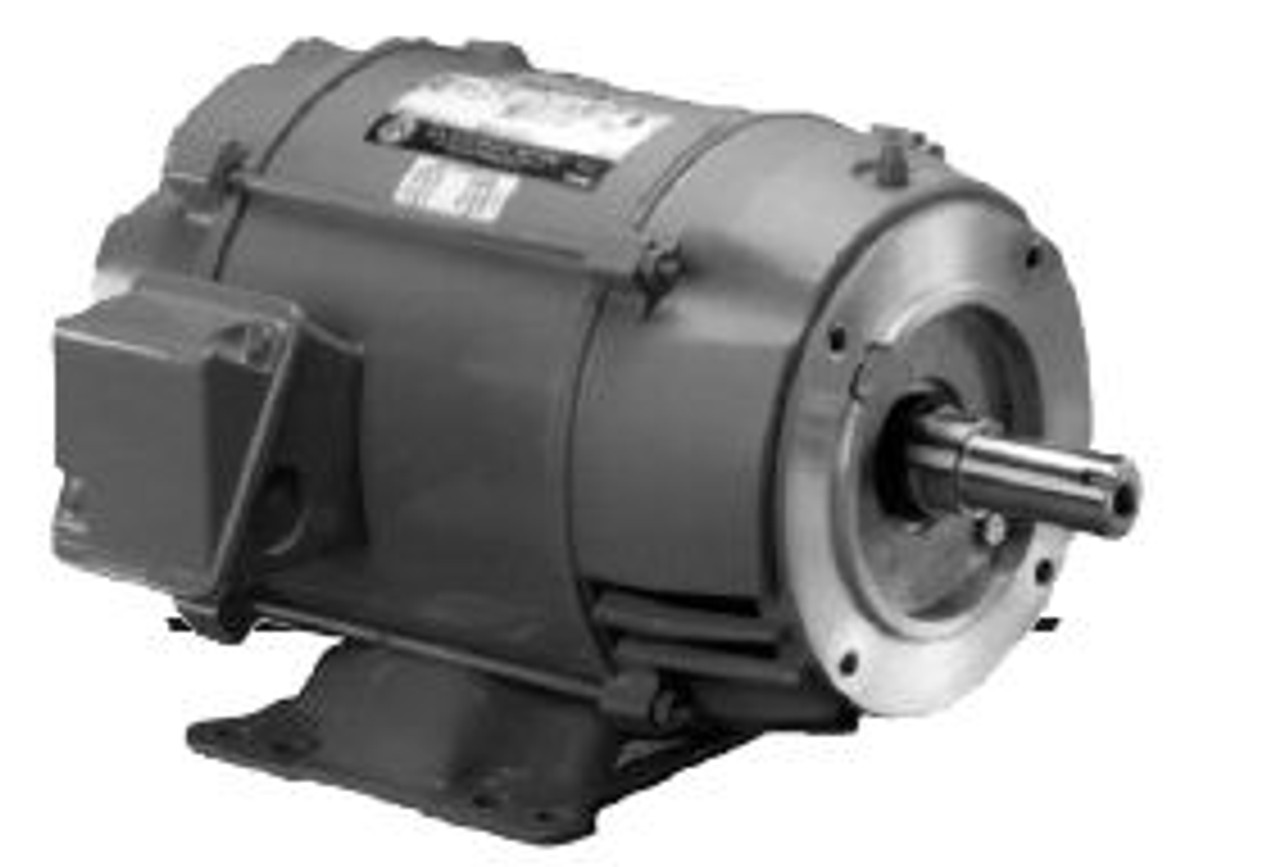

D32S1AHC 3 PH Open Dripproof IE3 C-Face Footed 1-1/2 HP

Product Description

D32S1AHC 3 PH Open Dripproof IE3 C-Face 1-1/2 HP

Applications:
For use on pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal.

Features:
- Class F Insulation
- 40 Degrees Celsuis Ambient, NEMA Design B Performance on 60 Hz Sine Wave Power
- Full HP @ 50 Hz
- F1 Assembly Position
- Conversion kits: Drip Cover Kits available

HP - 1-1/2
RPM - 3600
Voltage - 208-230/460
Frame - 56C
SF - 1.15
Length 11.9
Full Load Amps - 4.7-4.4/2.2
