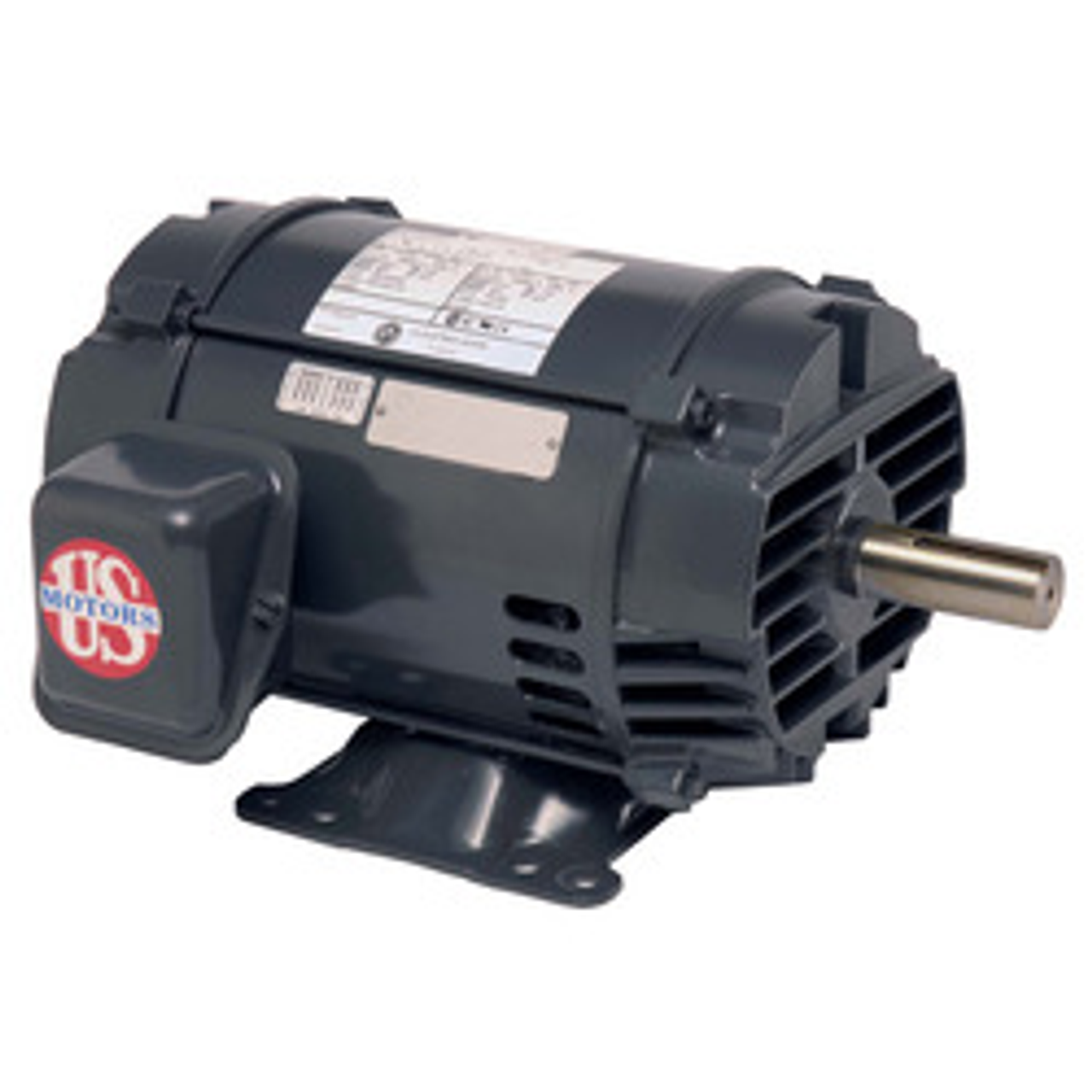

D250V2C Definite Purpose 3 PH Open Dripproof 250 HP

Product Description

D250V2C Definite Purpose Three Phase, Open Dripproof Inverter Duty 10:1 (6-60 Hz) Speed Range Variable Torque 250 HP

APPLICATIONS
For pumps, fans, blowers or other inverter powered applications.

FEATURES:
-Inverter Grade Insulation System (Meets NEMA MG-1 Part 31)
-Class F Thermostats (One Per Phase)
-Rolled Steel Frame (140-320), Cast Iron Frame (360-440)
-40*C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power
-Constant Horsepower To 90 Hz
-Double Sheilded Bearings 140-400, Open On 440 Frame
-Double Dip & Bake With Extra Bracing
-Premium Efficient Design, Special Balance, F1 Assembly Position
-Class F Insulation, 1.15 S.F. On Sine Wave / 1.0 S.F. On PWM

5:1 (12-60 Hz) Speed Range Constant Torque

HP - 250
RPM (MAX SPEED) - 1800 (3600)
VOLTAGE - 460
FRAME - 447T
"C" DIM. (inches) - 43.3
FULL LOAD EFF. - 96.2
FULL LOAD AMPS - 285
