Product Description

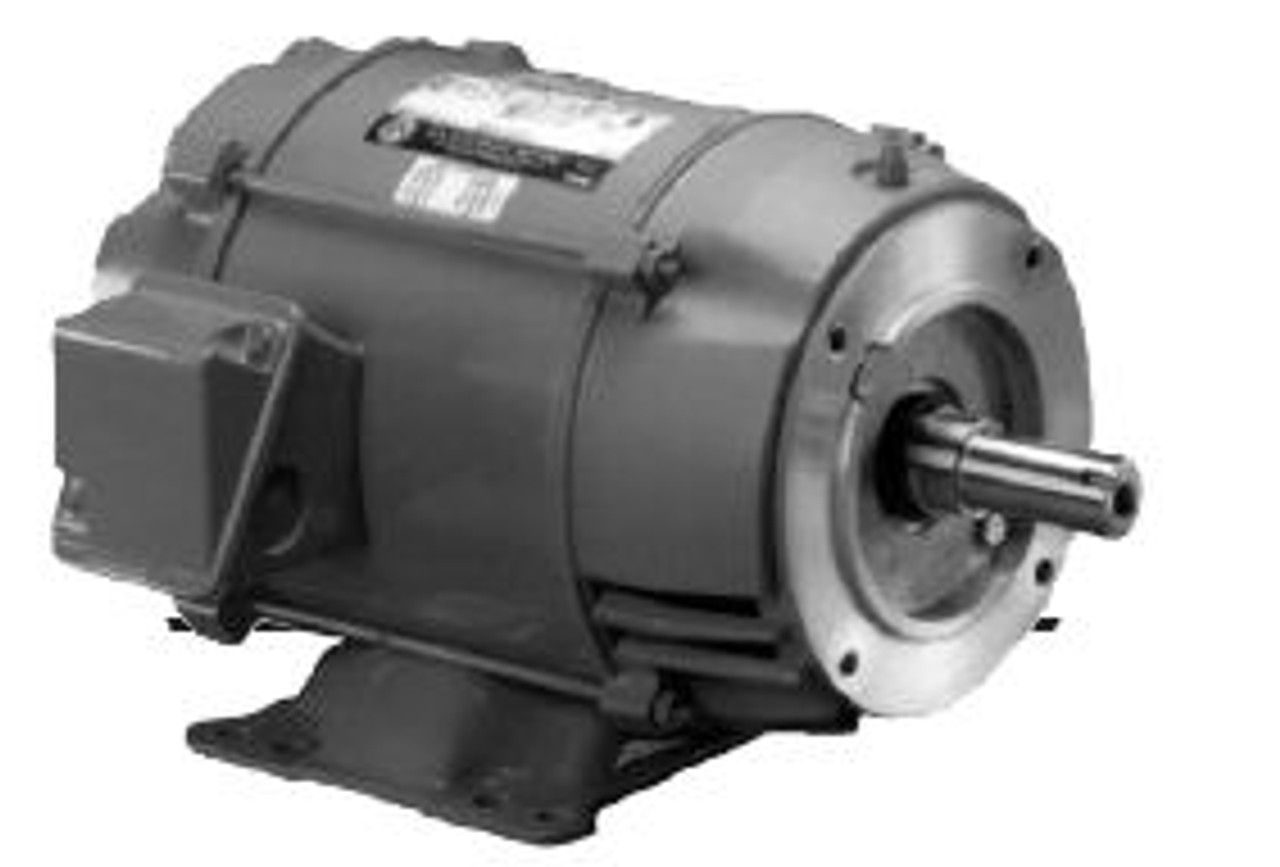

D20P2DC 3 PH Open Dripproof IE3 C-Face Footed 20 HP
Applications:
For use on pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal.
Features:
- Class F Insulation
- 40 Degrees Celsuis Ambient, NEMA Design B Performance on 60 Hz Sine Wave Power
- Full HP @ 50 Hz
- F1 Assembly Position
- Conversion kits: Drip Cover Kits available
HP - 20
RPM - 1800
Voltage - 208-230/460
Frame - 256TC
SF - 1.15
Length - 24.0
Full Load Amps - 54-49/24.4
NOTES: Suitable for Wye-Delta start on voltages shown; 60/50 Hz rated with no derate on HP; 230/460 volt 60Hz ratings operate on 190/380 volt 50 Hz, 460V 60Hz ratings operate on 380V 50 Hz; Full 60 & 50 Hz data on Nameplate
Ships via Freight Truck Only, please provide a delivery address that allows for semi truck for deliveries
