Product Description

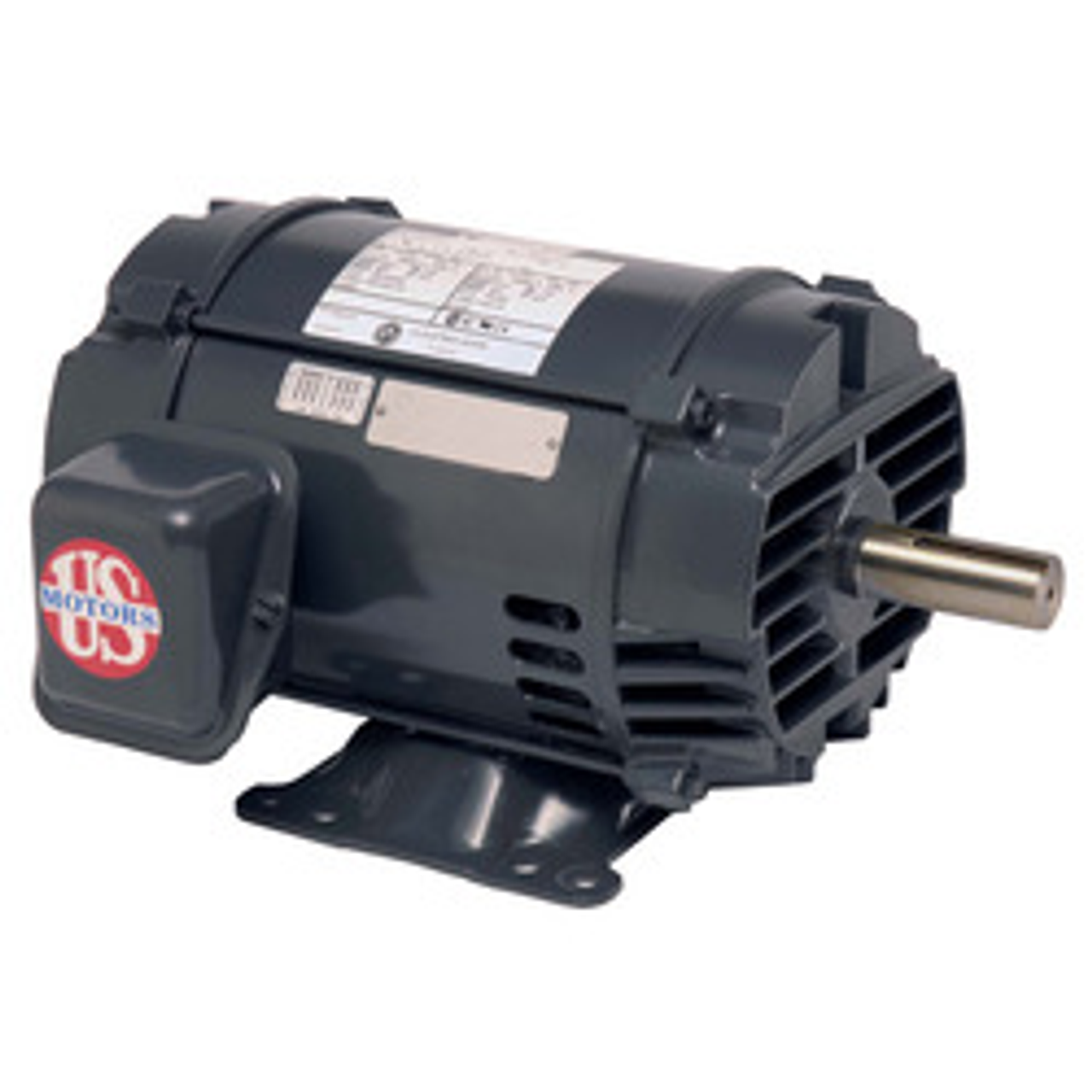

D14S2D4 3 PH Open Dripproof NEMA Premium Efficient IE3 - 1/4 HP
Applications:
For use in pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal.
Features:
- Class F insulation, Class B rise at service factor
- 40 degrees Celsius Ambient, NEMA Design Performance on 60 Hz Sine wave power
- 1.15 Service Factor
- Regreasable bearings
- Conversion kits: drip cover kits available
HP - 1/4
RPM - 1800
Voltage - 208-230/460
Frame - 48
C Dimension - 9.6 In
Full Load Eff-
Full Load Amps - 1.3-1.3/0.65
Part May Require lead time, please call for availability
NOTES: Does not include World Motor features, Non-NEMA premium rating
