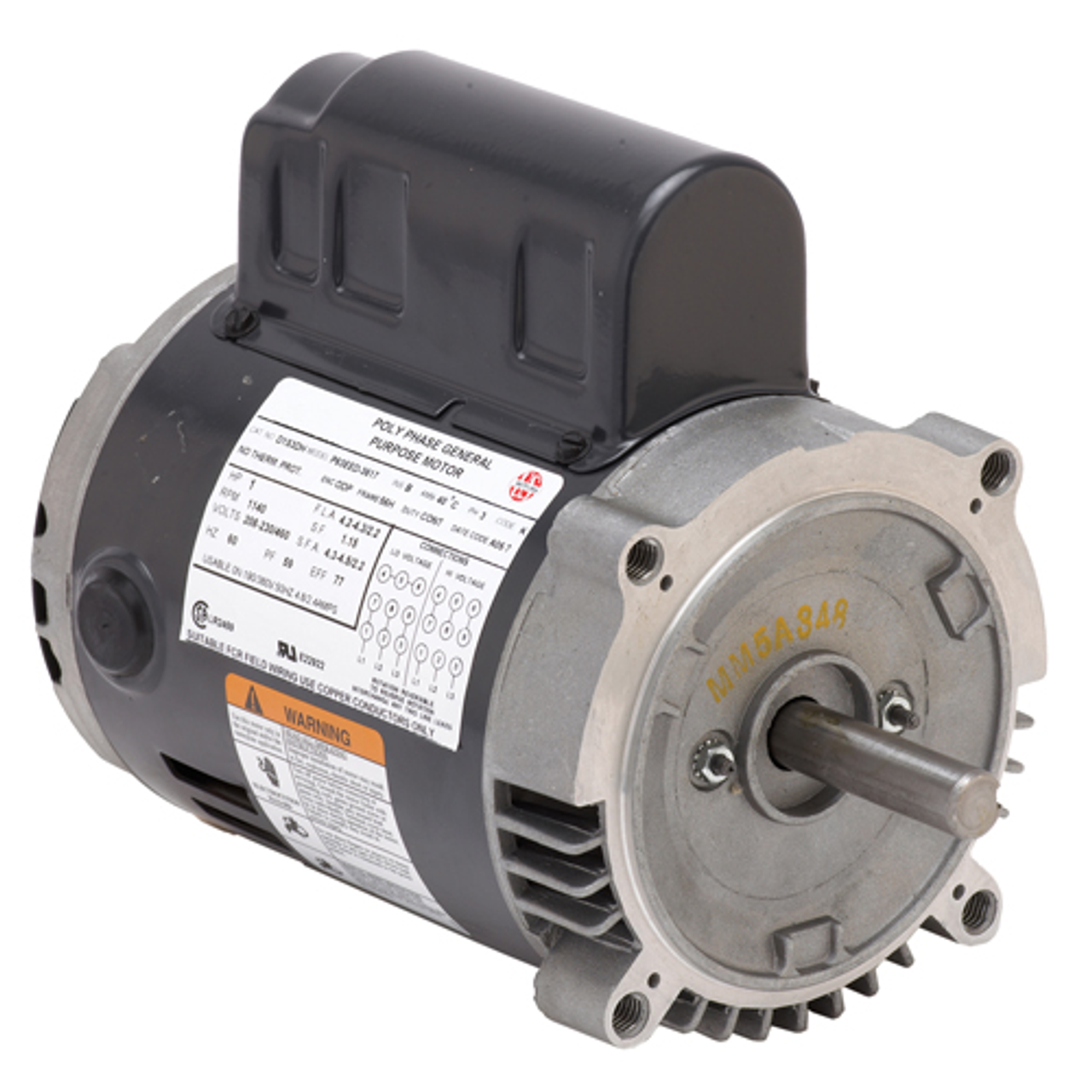

D12ARM2N9 Commercial Gate Single Phase ODP 1/2 HP

Product Description

APPLICATIONS:
For gate openers, hoists and most medium start reversing applications.

FEATURES:
-40*C Ambient
-1.0 Service Factor
-Reversible Rotation
-115 Volt, 60 Hz
-Permanent Lubricated Ball Bearings
-3 Lead Connection
-Manual Reset Thermal Overload Protector
-Terminal Board Connections Without Motor Switch
-Lower Inrush And Operating Currents
-Modest Starting Torque
-Allows Frequent Starts
-Continuous Duty Capacitor
-Continuous Duty/Intermittent Duty (1 HP Intermittent)

SPECS:
HP - 1/2
RPM - 1800
VOLTAGE - 115
FRAME - 56
S.F. - 1
C DIMENSION - 10.8
FULL LOAD AMPS - 5.0-5.7

NOTES: Resilient Base
