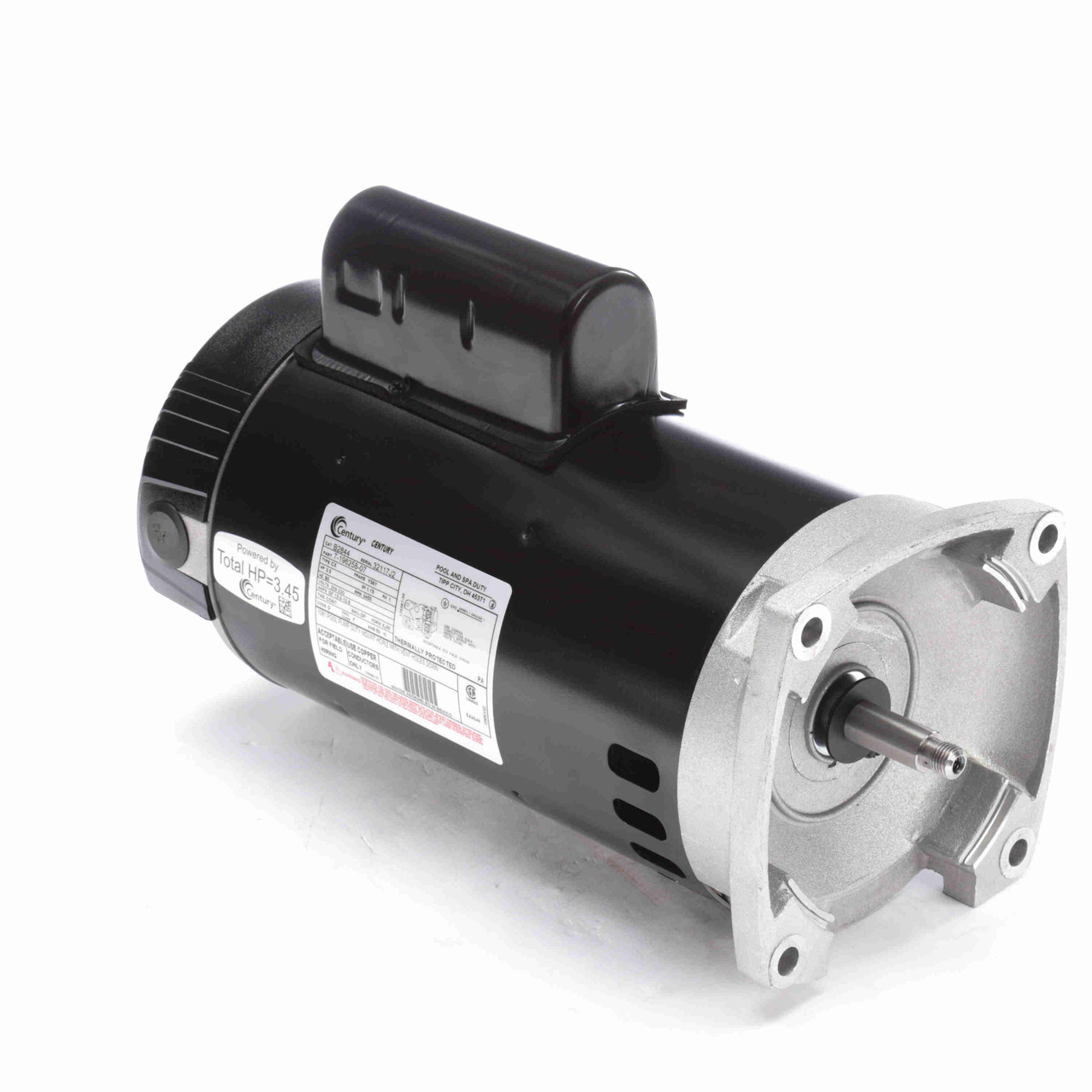

B2844 Century Pool Pump Motor 3 HP 3600 RPM Y56Y Frame

Product Description

Century B2844 Pool Pump Motor

• 3 HP
• 3450 RPM
• Y56Y FRAME
• PSC
• 208-230 VOLT
• 15.0-13.6 AMP
• 1.15 S.F.
• SINGLE SPEED
• DP
• CCWPE
• NO BASE
• SQUARE FLANGE
• 0.625" X 0.91" THREADED SHAFT
• 14.40" OVERALL LENGTH

Features:  Thermally Protected, Continuous Duty, Sealed Ball Bearings, Stainless Steel Shaf, UL 1081 Design, Switchless.

Note:  This type is common to most Sta-Rite, Pac Fab, Purex/Trition and WhisperFlo, Red Jacket, American Products, Sears and Challenger inground pool pumps.

Single phase and three phase motors. (56Y motor body diameter is 1/2" larger than 48Y)  Whisperflo 011583, Max-E-Glas II - Up Rate P4EA,

Cross Reference: SQ1302 165202 165892 168455 168888 B2844 177116 177453 EB844 1203012540 16362 SQ230E C1449 35-5395 C1449 MC1449

ATTENTION: Shipping Restrictions Apply!

** Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect **

Familiarize yourself with the building codes and laws in your state and local area in regards to replacing pump motors, in order to adhere to their regulations.
Click here for answers to frequently asked questions

California: This replacement pump motor does not comply with California's Efficiency Regulations. These regulations can be found in Title 20, in the California Code of Regulations (CCR) sections 1601-1609. To meet California’s requirement, the replacement pump motor must be a variable speed.
New York: This replacement pump motor does not comply with New York's Efficiency Regulations. These regulations can be found at NYSERDA Section 509.23, New York is aligning with California’s Appliance Efficiency Standards (Title 20)

To comply with current and upcoming regulations we recommend upgrading now to a variable speed motor. Please call or join us on chat if you have additional questions!
