ASB858 US-Nidec Pool and Spa Motor

Product Description

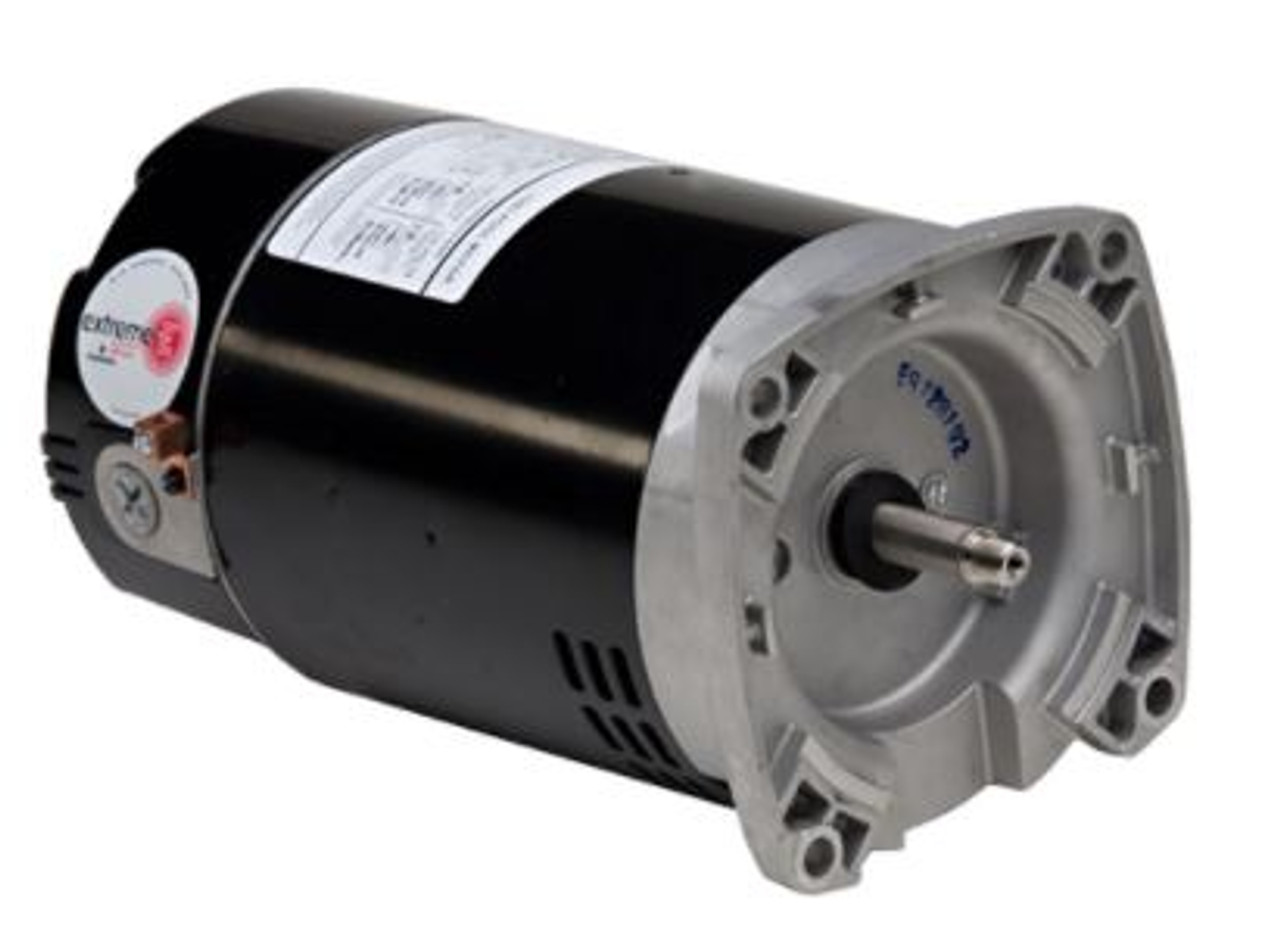

 US-Nidec ASB858 Pool and Spa Motor

• 2.25 THP
• 3450 RPM
• 56Y FRAME
• 6.5" DIAMETER
• 230/115 VOLT
• 10.8/21.6 AMP
• S.F. 1.10
• SINGLE SPEED
• OPEN DRIP PROOF
• SQUARE FLANGE
• CW LEAD END ROTATION
• NO BASE
• .625" X 1/2" SHAFT THREADED
• A-DIMENSION 14.46"

Features:  Two Compartment, 1/2-20 Threaded Shaft, Continuous Duty, Thermally Protected, Voltage Selection Device, Sealed Ball Bearings, Standard Efficient, Total Horsepower Rated (50 degree Ambient, Switchless Design).

Cross reference: EB858 K63CXDFP-5153 C1247(Suitable Replacement) MC1247 (Suitable Replacement) C1307 MC1307 B855

ATTENTION: Shipping Restrictions Apply!

** Effective July 19, 2021 the US Dept of Energy regulations on single speed, two-speed and booster pumps go into effect **

Familiarize yourself with the building codes and laws in your state and local area in regards to replacing pump motors, in order to adhere to their regulations.
Click here for answers to frequently asked questions

California: This replacement pump motor does not comply with California's Efficiency Regulations. These regulations can be found in Title 20, in the California Code of Regulations (CCR) sections 1601-1609. To meet California’s requirement, the replacement pump motor must be a variable speed.
New York: This replacement pump motor does not comply with New York's Efficiency Regulations. These regulations can be found at NYSERDA Section 509.23, New York is aligning with California’s Appliance Efficiency Standards (Title 20)

To comply with current and upcoming regulations we recommend upgrading now to a variable speed motor. Please call or join us on chat if you have additional questions!
