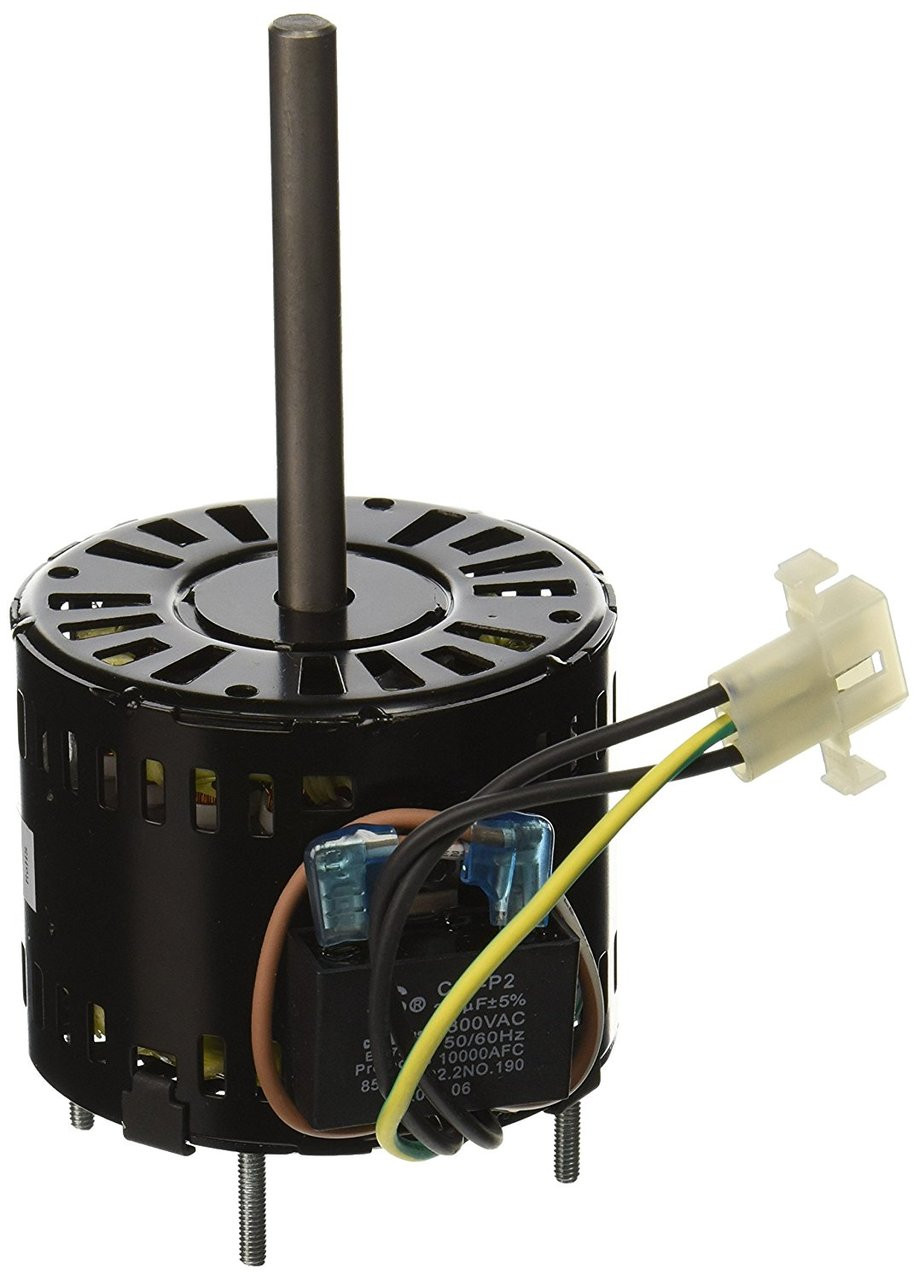

99080481 Broan Motor

Product Description

99-08-0481 Broan Motor

• 120 Volt
• 60 HZ
• Thermally Protected L, Class B
• Auto Overload
• 3 Wires: two Black & one Green with End Connector
• Shaft:
• 3/8" Dia. with flat side
• Shaft Length: 3.5"
• .40 amps
• 647 RPM
• CCWSE
• Bolt to bolt-3"
• Motor across is-3 1/2"
• Bottom of motor to top of shaft-about 5 7/8"

Cross Reference: L100, SI-411200-91R03BD0E, JA2R322D, E167360A, JA2R322, JA2R322N, L100L-A, L100-A, L100MG-A

NOTE: ITEM HAS BEEN REPLACED WITH A MORE EFFICIENT PSC TYPE MOTOR WITH A 2.5 INCH LENGTH BODY AND 3 INCH SHAFT, .4 AMPS, THE MOTOR IS RATED AT APPROX 650 RPM WHICH INDICATES THE OPERATING RPM WITH THE FAN LOAD (THIS RATING MAY DIFFER FROM THE ORIGINAL MOTOR)
