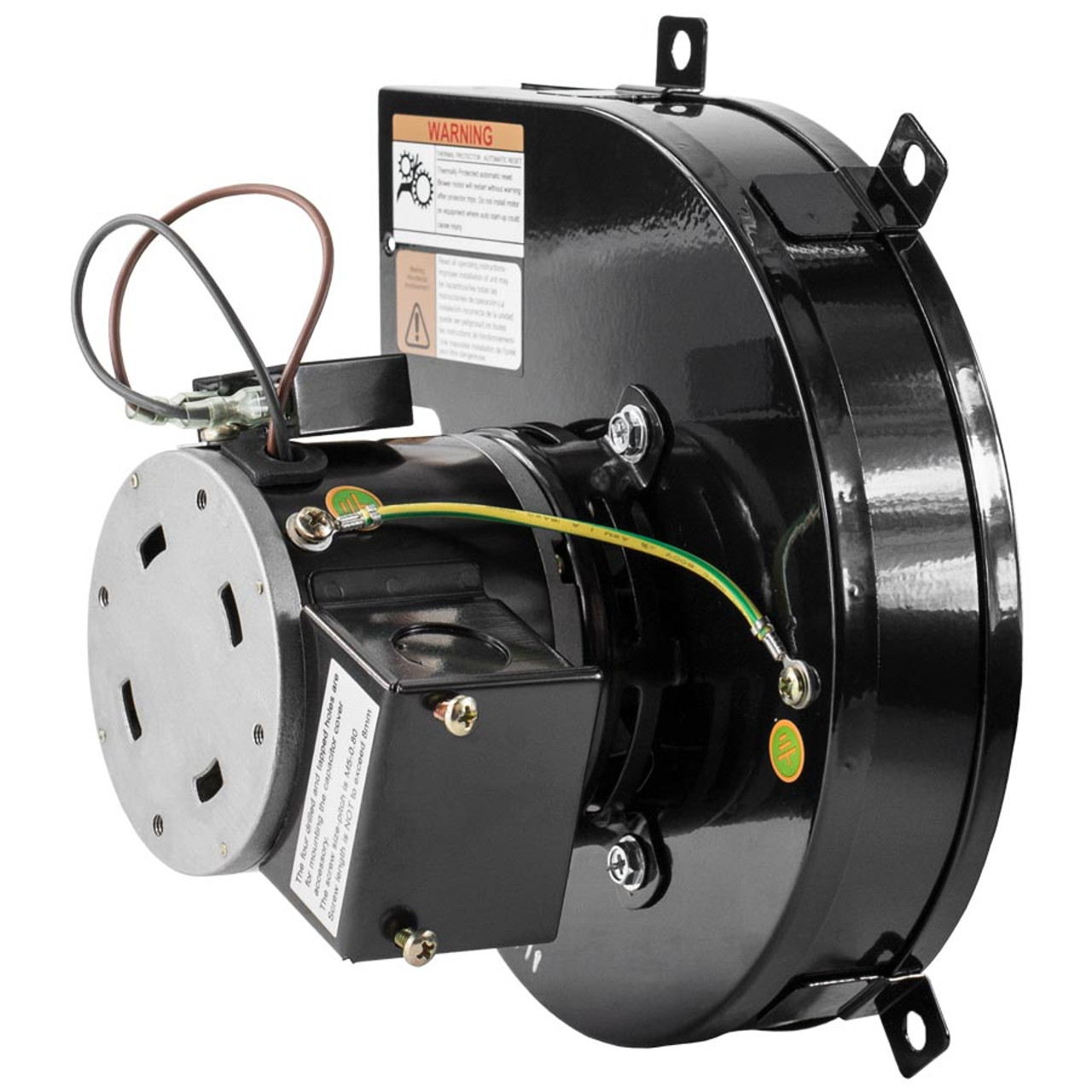

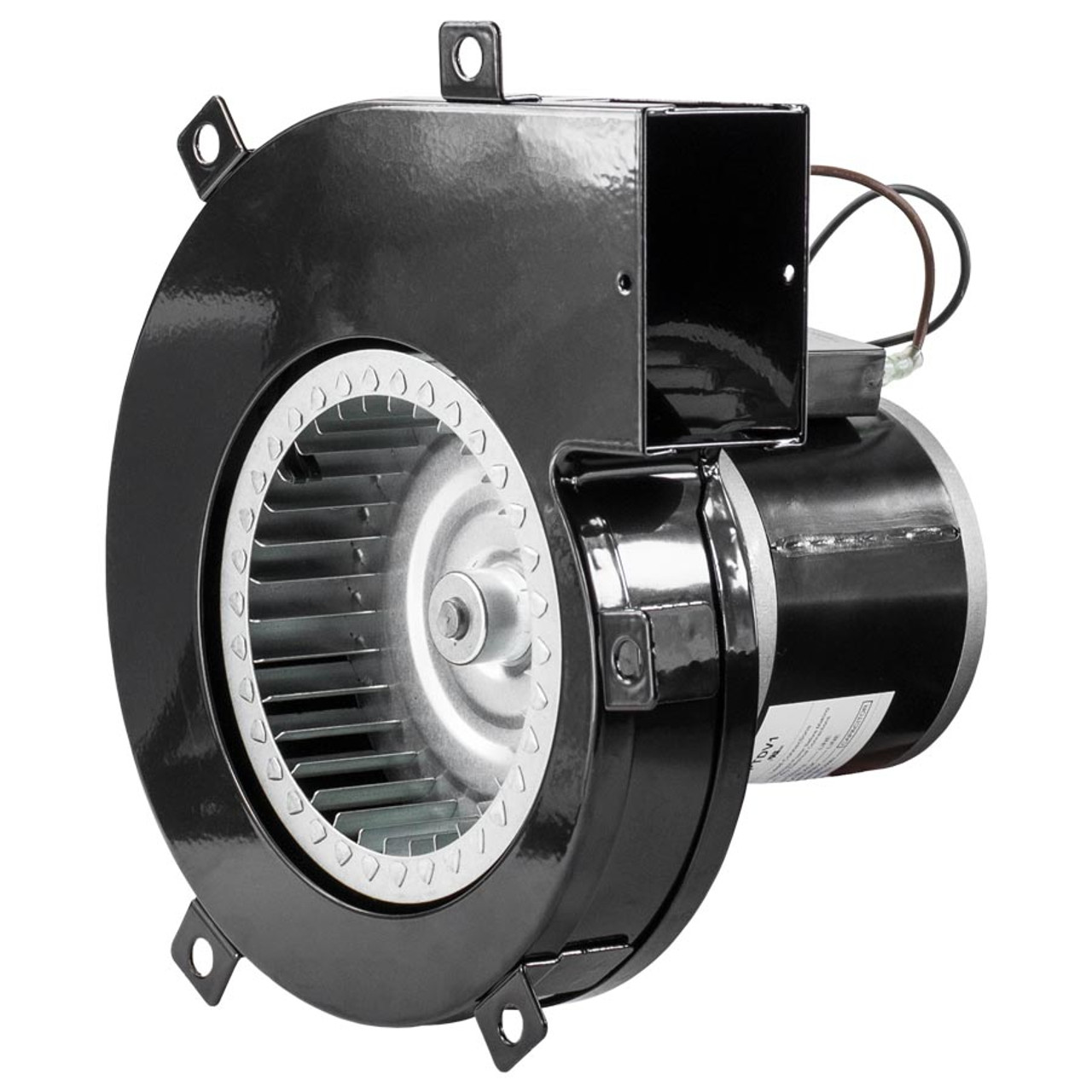

1TDV1, 4C723 Dayton Direct Replacement Blower

Product Description

Replacement Blower for Dayton 1TDV1, 4C723
Direct OEM Aftermarket Replacement

• Max Airflow 101 CFM
• 2500 RPM, .52 amps, 115 Volts 60/50hz.
• Mounting: All Position
• Ball Bearings

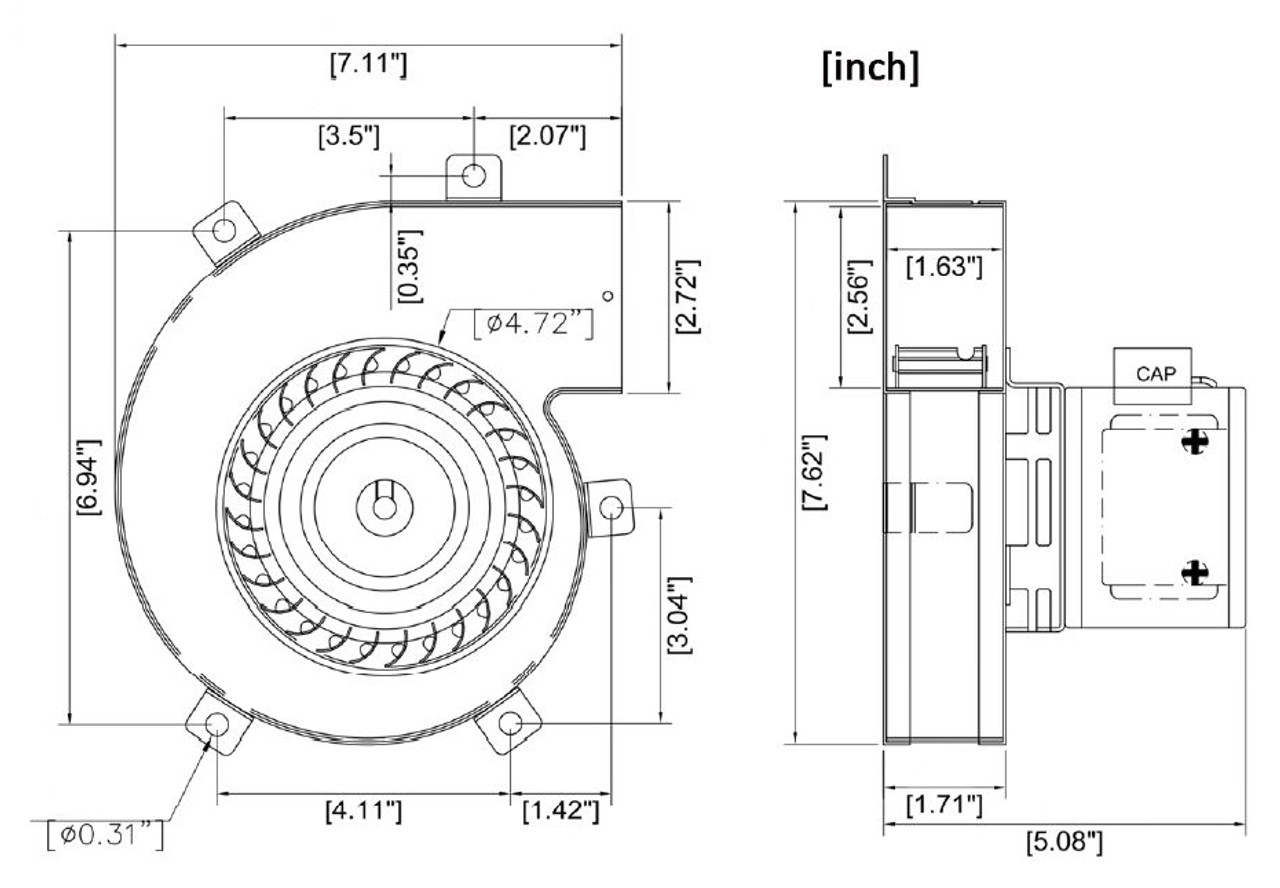

• Outlet Flange Dimension: 1.7" x 2.7"
• Automatic Overload Protection
• cULus Approved
• Housing Material: Painted Steel
• Insulation Class B
• PSC Motor Type
• Includes Conduit Box

NOTE: Motor must be positioned in an area where the temperature does not exceed 104°F. Blower is designed to handle air temperatures up to 450°F at blower inlet.

• Non Reversible
• Not recommended for speed control
• Blower has no power cord or on/off switch
• One Year Manufacture Warranty

Suggested Replacement for the following models:
Dayton Model 4C723 is discontinued - the PTDV1 blower is the direct replacement
Fasco Model 7021-5538
